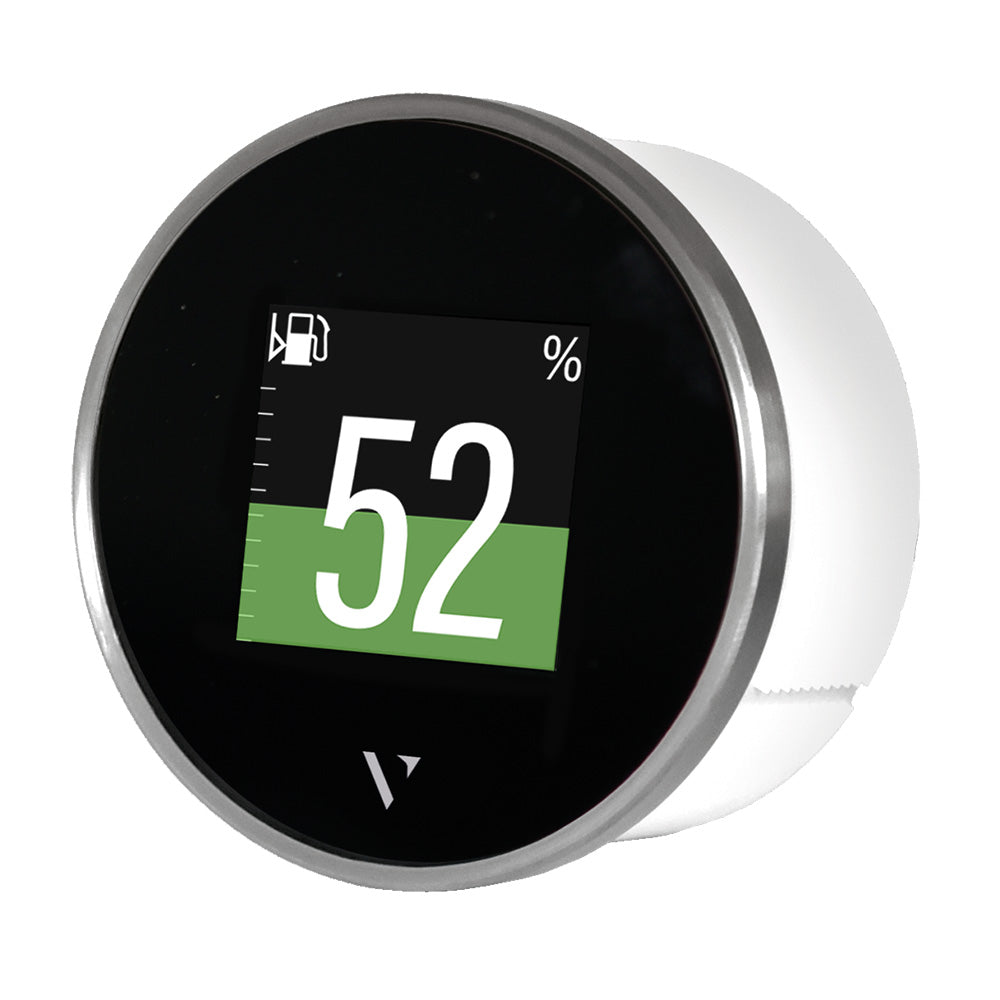

Veratron 52mm (2-1/16") VMH Flex Multifunction Gauge - NMEA2000 [B00186401]

52mm (2-1/16") VMH Flex Multifunction Gauge - NMEA2000

Small but powerful, the VMH Flex is the perfect com­­­pro­mise to display a large amount of boat data in a compact device. No matter if you are wearing gloves or if it is raining on your deck, the innovative laser touch button allows you to scroll up to 5 different screens.

Every screen can be freely customized with your most important information, and the setup – including alarms – is easily done with your smartphone just with a tap.

Features:

• Up to 5 scrollable screens in single or dual layout
• Functions - Rudder, Trim, Speed, Engine revolution, Engine hours, Fuel level, Fresh water level, Wastewater level, Coolant temperature, Oil temperature, Engine oil pressure, Transmission oil pressure, Boost pressure, Depth, Clock, Compass, Battery
• Innovative laser touch-button reliable in every practical condition
• NMEA 2000® connectivity
• 2x analog resistive inputs for direct sensor connections
• Embedded analog to NMEA 2000® converter
• LIN port for Intelligent Battery Sensor

Technical Specifications:

• Nominal Voltage - 12/24V
• Operating Voltage - 9-32V
• Protection Class - IPX7
• Dimensions - 60mm (outer), 52mm (mounting hole)
• Display - 1.44" sun-readable color TFT display
• Resolution - 125 x 125 pixels
• Analog Inputs - 1x resistive, 1x frequency
• Connectors - Tyco / Hirschmann MQS connector 8 pin / Micro-C M12 5Pin
• Digital Ports - NMEA2000, LIN bus
• Wireless Interface - NFC

In the Box:

• 1x VMH Flex – NMEA 2000®
• 1x 52 mm Spinlock Nut
• 1x Rubber Sealing Gasket
• 1x Wiring Harness – NMEA 2000®
• 1x Safety Instructions and Veratron Card
