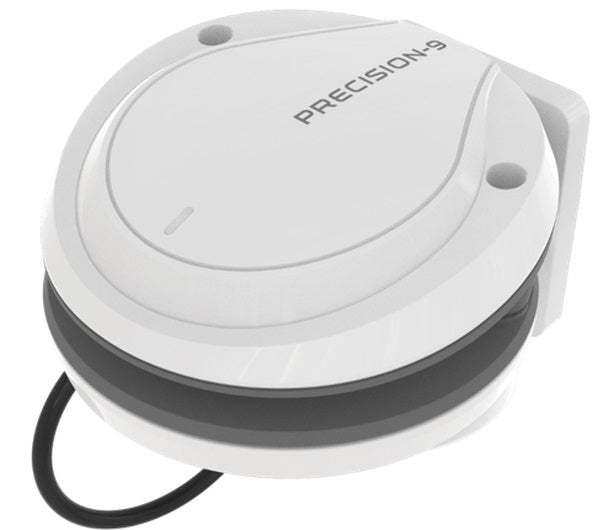

Simrad Precision 9 Compass

Model: 000-12607-001
UPC: 9420024145999
  • Heading, Rate Of Turn (ROT), roll, and pitch output over NMEA 2000(R)
  • Heading and ROT calculated using sensor data from 9 axes of rotation and motion
  • Accurate and reliable solid-state sensor technology
  • Heading accuracy of ±2 deg after calibration
  • Easily adjustable mounting bracket allows bulkhead or up-mast installation
  • IPX7 waterproof. Best in class.
  • Simple installation with a single NMEA 2000(R) connection

The Precision-9 Compass supplies heading and rate-of-turn information to Simrad, B&G and Lowrance autopilot, radar and navigation systems. Based on reliable solid-state sensor technology, this compact compass offers easy installation aboard any vessel.

Specifications
Supply and Interface 8-16 V via NMEA 2000
Power consumption 0.4 W
NMEA 2000 Load Equivalence No. (LEN): 1
NMEA 2000 ports (input/output): 1
Calibration Automatic (User Prompted)
Repeatability ± 1.0 deg (or better)
Roll/Pitch range ± 45 deg
Heading accuracy: ± 2 deg after calibration
Dynamic performance: with random excitation of ± 10 deg at max 1 Hz: Heading error <2 deg: with heading step input of 90 deg at a rate of 10 deg/s Heading error 10 sec. after turn <2 deg
Environmental protection: IPX7
Compass safe distance: 0.5 m (1.7 feet)
Temperature range operation: -25 to +65 degC (-13 to +149 degF)
Temperature range Storage: -30 to +70 degC - (-22 to +158 degF)
Dimensions H: 36 mm (1.42 in), W & D: 119 mm (4.69 in)

What's in the Box:
  • Precision 9 Compass
  • N2K-T-RD - Micro-C T-connector
  • N2KEXT-15RD - 4.55 m (15-ft) NMEA 2000(R) cable


WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Brand: Simrad

UPC: 9420024145999

Model Number: 000-12607-001

Weight: 2.7
