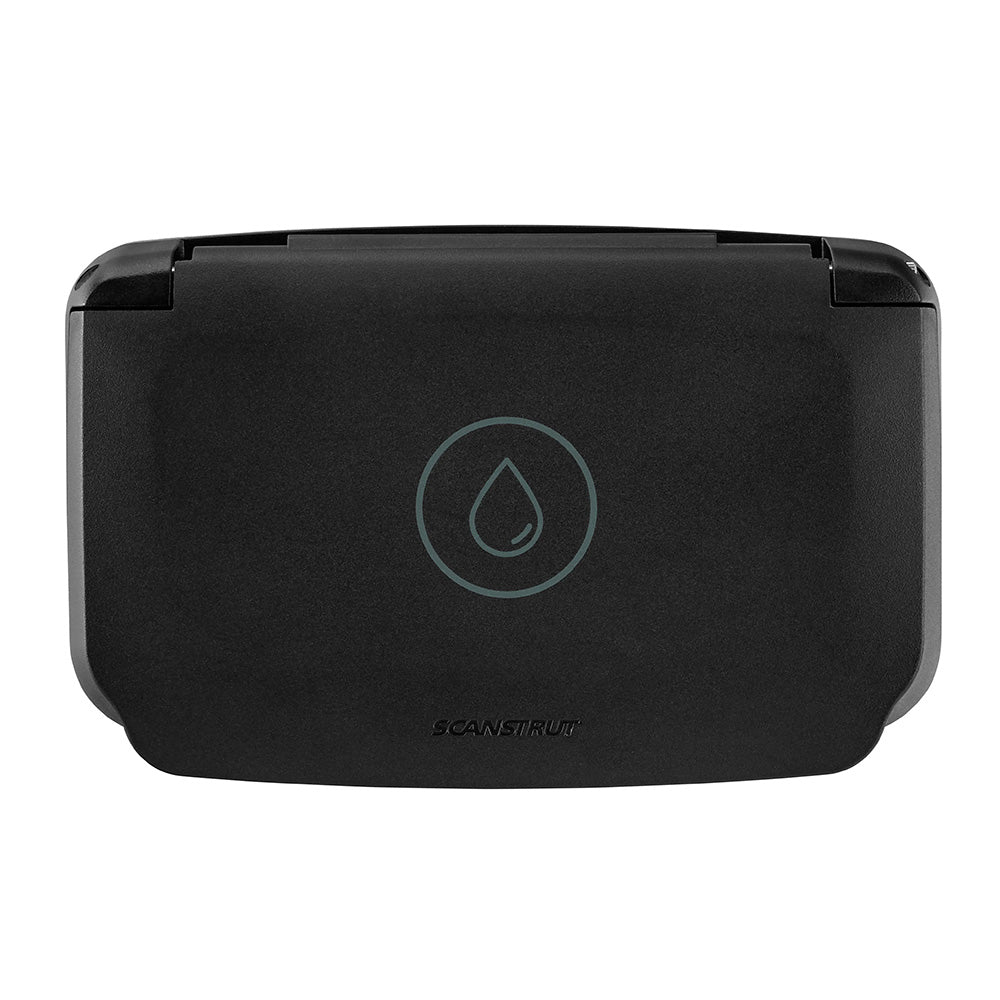

Scanstrut Ventura Series Quick Connect Cold Water w/Wash Down Kit [SC-V-W1]

Ventura Series Quick Connect Cold Water with Wash Down Kit

Upgrade Your Onboard Experience with the Quick-Connect Cold Water Outlet & Wash Down Kit!

Keep your deck spotless and your gear shipshape with the Scanstrut Ventura Series Quick-Connect Cold Water Outlet, built for life on the water.

Whether you're rinsing off sandy feet after a beach day, washing down muddy bikes, hosing off the dog, or cleaning up after a long day on the trail, the Scanstrut Ventura Series Quick-Connect Cold Water Outlet has your back.

Working seamlessly with the rest of the Ventura Series, integrating power, water, solar, and more into a single, cohesive design language.

Designed for fast, hassle-free access to cold water wherever the road takes you, this outlet features a nickel-plated brass Quick-Connect coupling for effortless connection and smooth water flow.

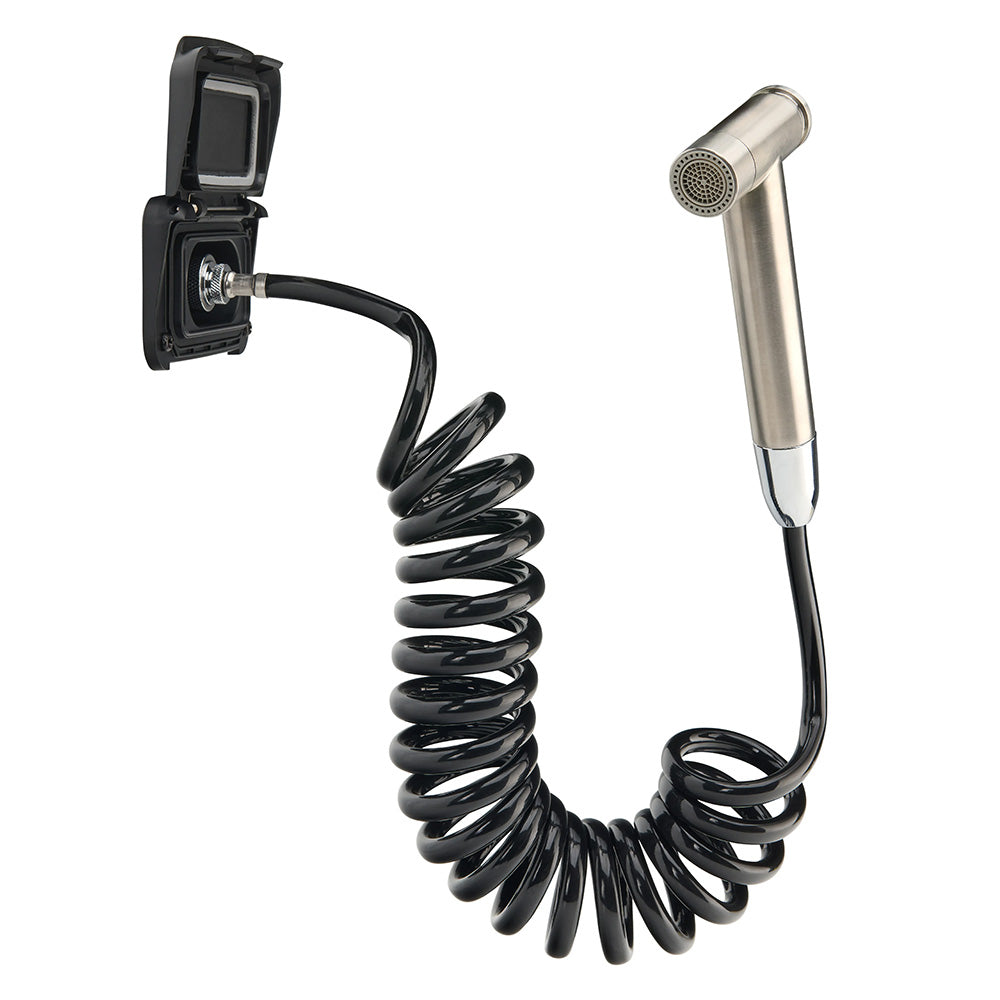

The included 3m (10ft) coiled hose and stainless-steel shower head, with two spray patterns (Jet or Shower), provide flexible, go-anywhere functionality, perfect for vanlifers, boaters, campers, and overlanders.

Built with Scanstrut's marine-grade heritage, it’s crafted from 316 stainless steel and rigorously tested for UV resistance and waterproofing (IP68 & IP69K), ensuring it can withstand whatever the elements throw your way. Like every Ventura Series product, it features a compact, uniform design that integrates beautifully with your exterior setup, matching sockets for power and solar to keep your build clean and cohesive.

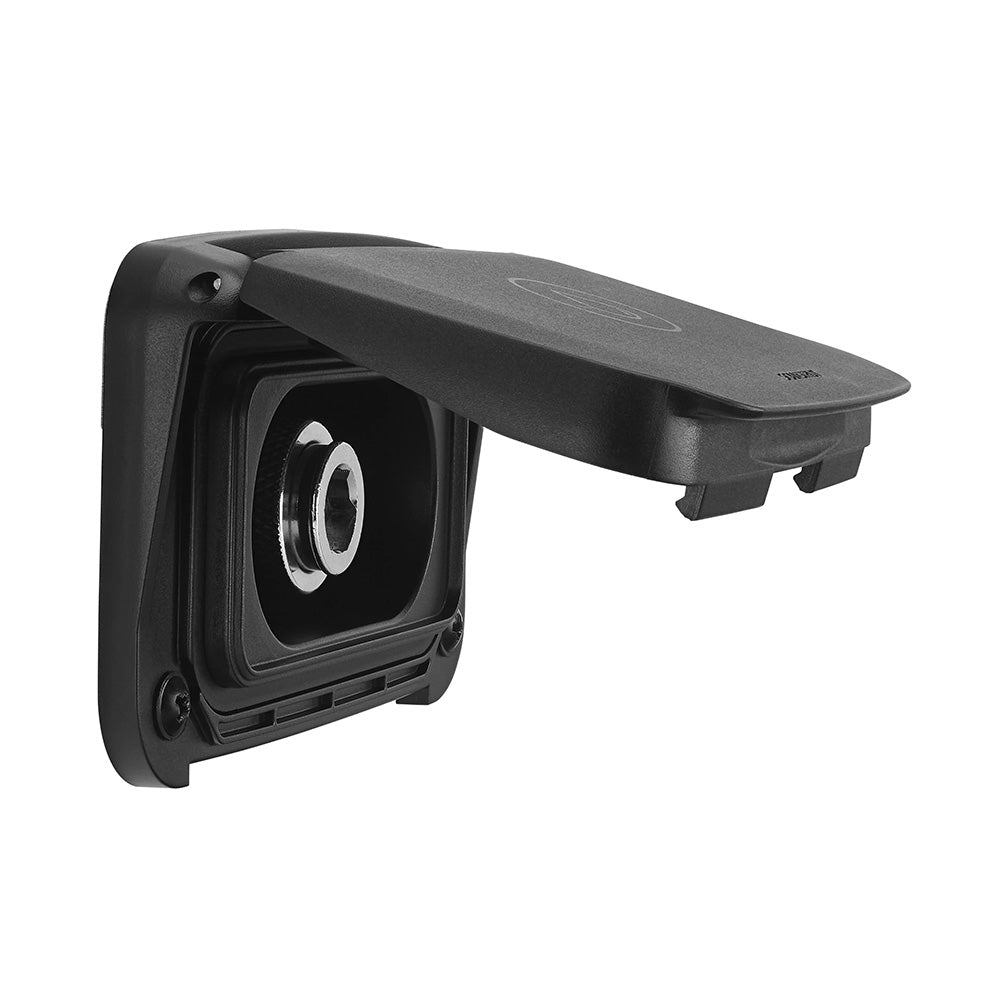

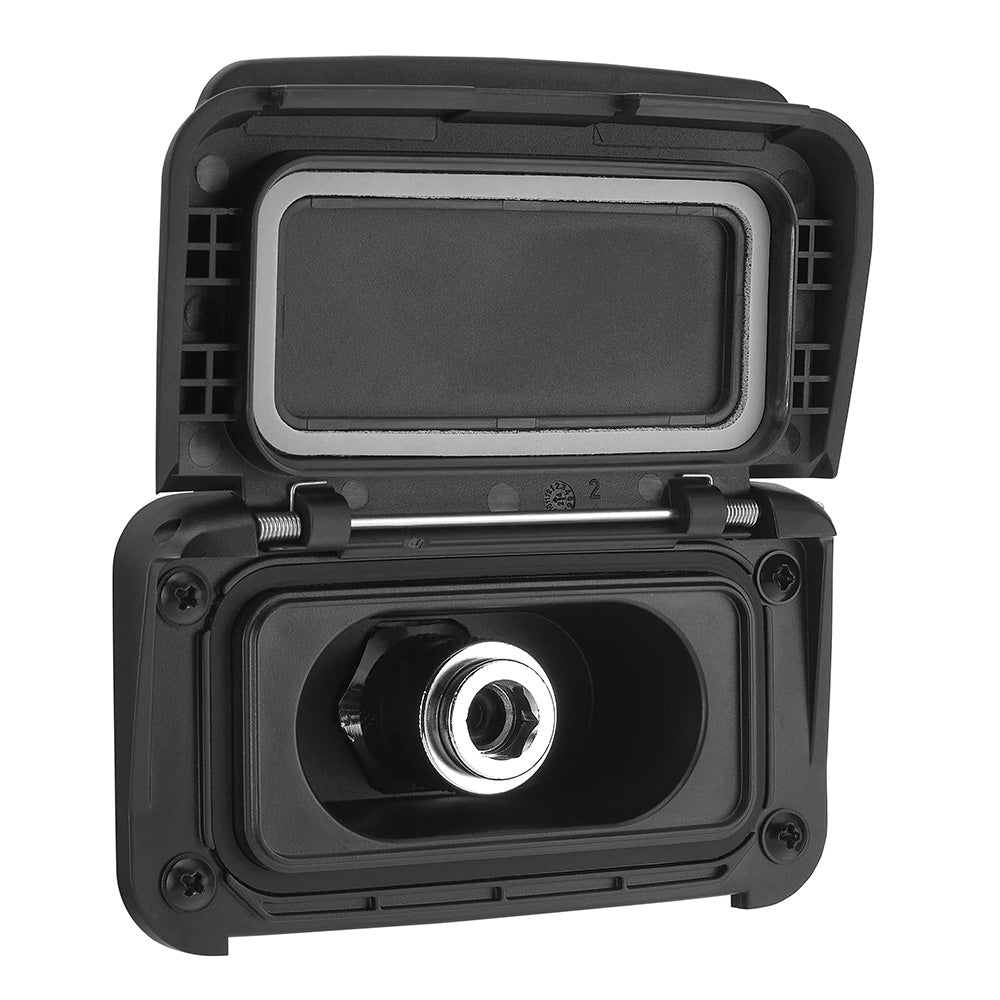

Housing Features:

• IP68, IP69K Waterproof (Cover Closed)
• Quick-Connect Nickel-Plated Brass Coupling
• Marine-Grade 316 Stainless Steel Components
• Self-Sealing Valve
• Water Supply Thread Size 1/2” BSP
• Standard 38mm (1.50”) Holesaw Installation
• Built-in gasket for a watertight seal
• Spring-loaded lid
• 90° Holding Bump-Feature
• Easy install

Sprayer Features:

• Supplied with 3m (10ft) Coiled Hose - Multi-Pattern Stainless Steel Shower/Sprayer Head.
• Sprayer Type - Full stainless-steel construction, Locking flow switch, multi-adjustable spray pattern jet or shower.

Specifications:

• Max Water System Pressure: 8 BAR (115PSI)
• Hose Type: 3m (10ft) length, coiled PU material
• Hose Diameter: 9mm (0.35")
• Sprayer Type: Full stainless-steel construction, Locking flow switch, Adjustable spray pattern
• Waterproof Rating: IP68, IP69K Front only when lid closed
• Certification: ROHS

Specifications:

• Type: Parts
• Box Dimensions: 4"H x 7"W x 9"L WT: 1.69 lbs
• UPC: 5060114799516
