Scanstrut DS16-SL Starlink Compatible Cable Seal - Grey [DS16-SL]

DS16-SL Starlink Compatible Cable Seal - Grey

The perfect cable seal to elevate your Starlink installation. This vertical entry cable seal, now compatible with Starlink, is IP68 certified and accommodates sizes from 4-6mm (0.16"-0.24"), and connectors up to Ø16mm (0.63").

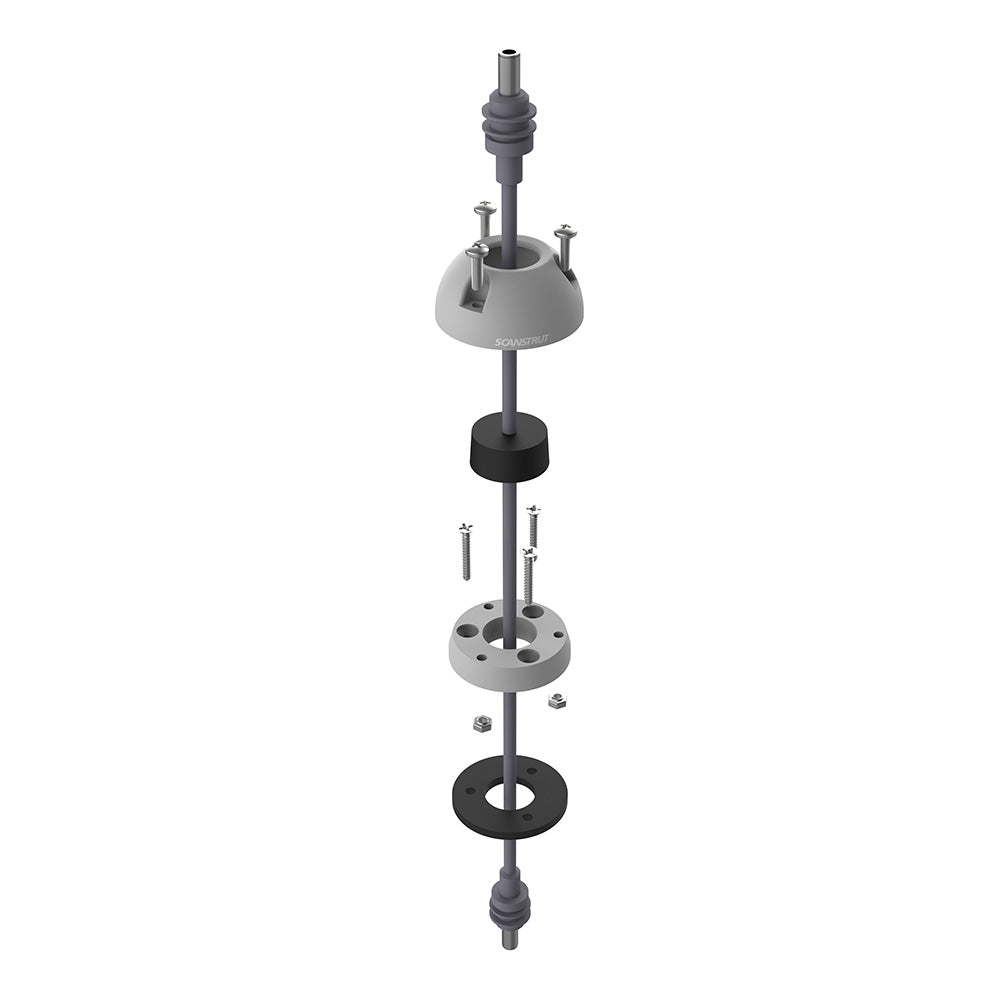

Designed with ease of installation, the split bung ensures no wire cutting is required. The aesthetic dome-shaped profile provides a stronger, impact-resistant design, and captive nuts in the base make assembly easy.

Multi-Functional Dome Shape

The aesthetic dome-shaped profile provides a stronger, impact-resistant, and additional water shield.

Watertight Installation

The tapered bung is supplied with a closed base seal to form a 100% IP68-rated watertight seal.

Easy & Reliable Installation

Captive nuts make for easy assembly and allow reliable repeat installations. Each unit is supplied with both pre-drilled and blank inner seals to make your installation as easy as possible.

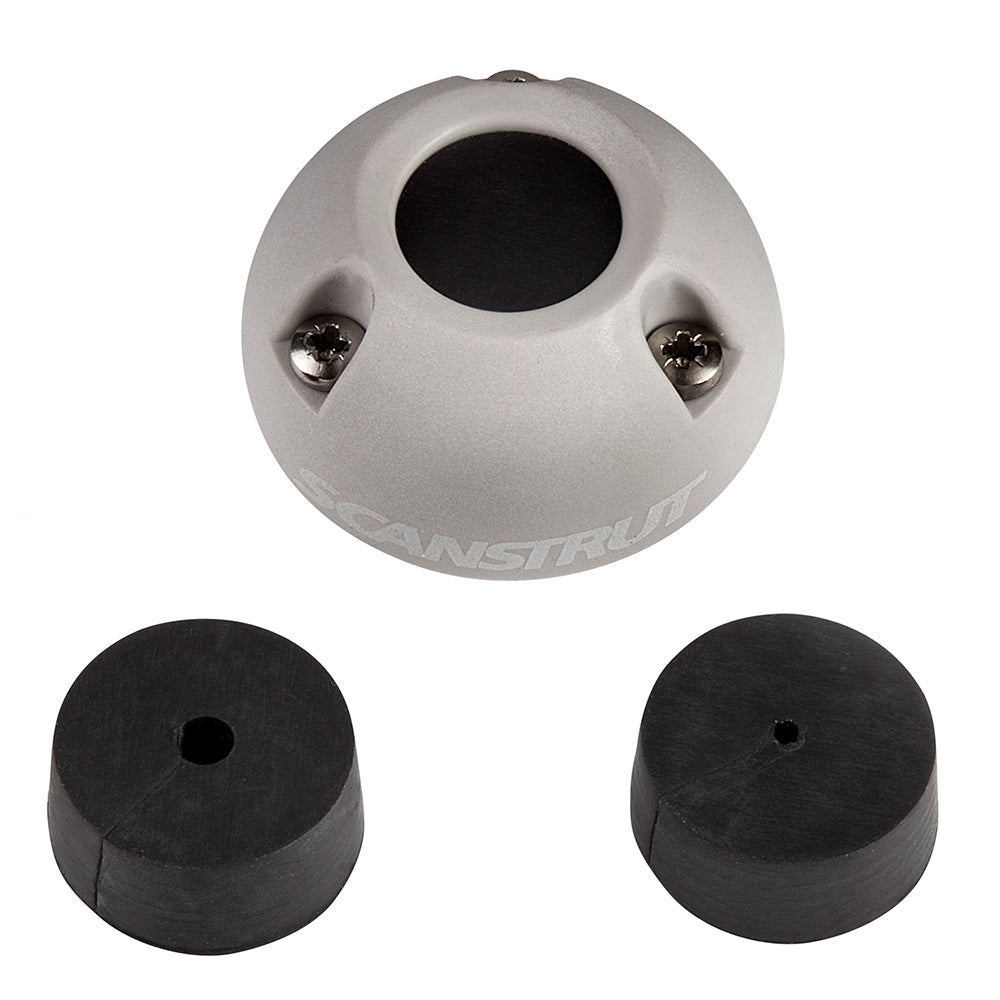

Split Bungs

The split-seal option makes installation even easier, as it does not require the connectors to be removed during installation.

Features:

• IP68 waterproof rated
• Made from premium marine-grade UV-stable materials
• Includes 316 stainless steel fixings and a waterproof 3M gasket
• Captive nuts ensure an easy and reliable repeat installation
• No messy sealant on bungs
• Split bungs for ease of installation
• Install connectors up to Ø30mm (1.18") in diameter
• Fully customizable with self-drill bung options
• 3 bungs- 1x blank, 1x 4mm, 1x 6mm
• Compatible with: Standard (Gen 3) / Standard, Enterprise (Gen 3)/ Enterprise & Mini

Specifications:

• Material: High Impact Plastic
• Height: 19mm (0.75")
• Color: Grey
• Diameter of Cable Seal: 39mm (1.18")
• Diameter of Cable: 4 - 6mm (0.16"-0.24")
• Bungs: 1 x 4mm (0.16") / 1 x 6mm (0.23") /  1 x Self drill

Compatible with:

• Standard (Gen 3) / Standard
• Enterprise (Gen 3) / Enterprise
• Mini

Specifications:

• Type: Deck Seal
• Box Dimensions: 2"H x 4"W x 8"L WT: 0.15 lbs
• UPC: 5060114799691
