Raymarine RVX1000 3D Chirp Sonar Module [E70511]

Raymarine RVX1000 3D Chirp Sonar Module [E70511]

Vendor: Raymarine
SKU: 71949
Availability: In stock
Product type: Sounder/Sonar Modules
$1,597.39
$1,736.29
$1,597.39
Subtotal: $1,597.39
Description
Description
x

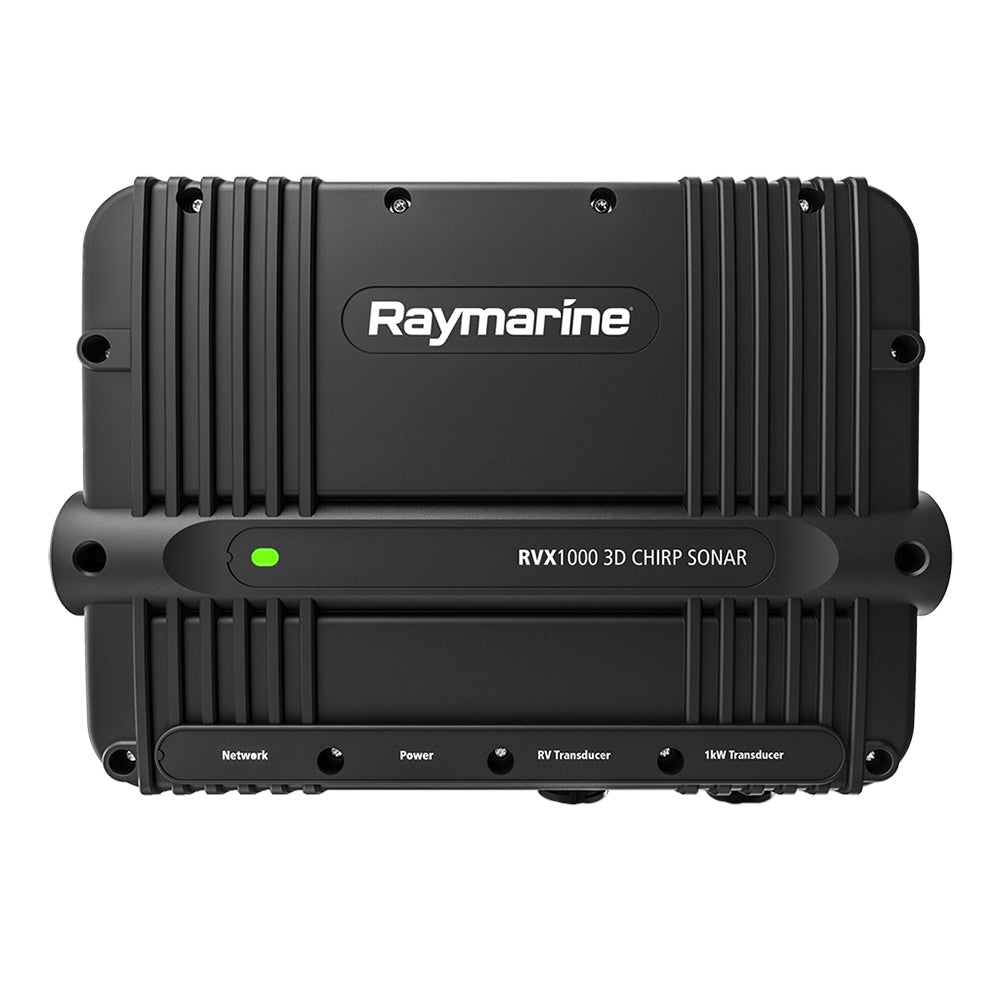

RVX1000 3D Sonar Module

The RVX1000 offers all of the sonar performance and features of Raymarine Axiom Pro in a remotely mounted black box sonar module. With Raymarine’s award winning RealVision 3D sonar technology, CHIRP Side and DownVision, plus a high powered 1kW dual channel CHIRP sonar, the RVX1000 is a versatile sonar solution for both inshore and offshore fishing.

Features:

  • 5-channel sonar with RealVision 3D, CHIRP Down and SideVision, high-frequency CHIRP and high-power 1kW CHIRP Sonar
  • RealVision 3D with GPS Track
  • Sonar Scroll Back – Rewind, pause, and playback recorded sonar history
  • Raymarine’s TrueZoom™ magnification technology
  • RealVision 3D gyro stabilization compensates for boat movement, delivering life-like 3D imagery
  • Dual transducer connections supporting both RealVision 3D and Airmar CHIRP 1kW transducers
  • Fast quad core processor delivers stunning 3D sonar imagery alongside CHIRP, DownVision and SideVision sonar channels without any lag or delay

Specifications:

  • Connections: 1x RVX Port = 25 pin RealVision connector | 1x 1kw Port = 11 pin 1kW connector | 1x Power connection | 1x Raynet connection
  • Sonar: SonarRealVision 3D (CHIRP Side and DownVision, High Frequency CHIRP, 3D Sonar) + 1kW High Power CHIRP
  • Sonar Depth: High Frequency CHIRP = 900 feet | DownVision = 600 feet | SideVision = 300 feet Port and Starboard | 1kw = 5,000 feet
  • Nominal Supply Voltage: 12 V and 24 V DC
  • Operating Voltage: Range10.8 V to 31.2 V DC
  • Power Consumption: 10.4 W (Maximum)
  • Current: 2.4 A Peak; 1.2 A RMS
  • Fuse/Breakers: 5amp
  • Waterproof Rating: IPX6/IPX7
  • Operating Temperature: -25 C (-13 F) to +55 C (+131 F)
  • Storage Temperature: -30 C (-22 F) to +70 C (+158 F)

The RVX1000 is compatible with all LightHouse 3 enabled Multifunction Displays running software version 3.4 or higher.

In the Box:

  • RVX1000 Sonar Module (1)
  • Power Cable, 1.5M (1)
  • Fixing Screws, #8 (4)
  • Documentation Pack (1)
  • RayNet Network Cable, 2M (1)
