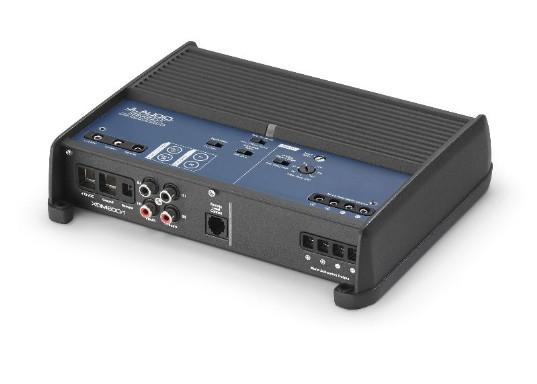

Jl Audio XDM600/1 Monoblock, Class D, Car/Marine Subwoofer Amplifier, 600 W
Model: XDM600/1This potent monoblock amplifier employs our high-speed NexD™ switching design to achieve unprecedented efficiency and amazing power output from a very compact chassis. Don't let its small size fool you, though... the XDM/600/1 generates serious subwoofer power, delivering a full 600 W of continuous power into a 2 ohm load (14.4V, 1% THD).
Designed for car or boat installations, the XDM600/1 is built with marine-grade materials and features an exclusive, dual-mode input filter for noise-free performance in boats or cars. Automatic turn-on capability (via signal sensing or DC-offset sensing) is also onboard for easy factory system upgrades.
Targeted specifically for subwoofer applications, the XDM600/1 includes a variable slope low-pass filter with continuously variable cutoff frequency selection from 50-500 Hz. With the addition of an optional HD-RLC or MHD-RLC (water-resistant) remote level controller (each sold separately), the amplifier's level can be adjusted directly from the driver's seat or captain’s chair.

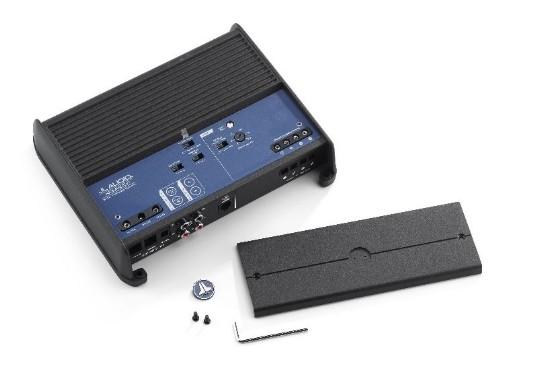

Finished in a sleek, black powder-coat, all controls are protected beneath a gasketed, removable top cover for easy access.
Specifications| @ 4 ? | 400 W RMS x 1 |
| @ 3 ? | 500 W RMS x 1 |
| @ 2 ? | 600 W RMS x 1 |
| @ 1.5 ? | N/A |
| Rated Continuous (RMS) Power @ 12.5 V | |
| @ 4 ? | 300 W RMS x 1 |
| @ 3 ? | 400 W RMS x 1 |
| @ 2 ? | 500 W RMS x 1 |
| @ 1.5 ? | N/A |
| General Specifications | |
| Frequency Response | 7 Hz - 500 Hz (+0, -1dB) |
| S/N Ratio, referred to highest rated power | >87 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| S/N Ratio, referred to 1 W | >67 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| Damping Factor @ 4 ? | >1000 / 50 Hz |
| Damping Factor @ 2 ? | >500 / 50 Hz |
| THD+N @ Rated Power | <1% @ 2 ? per Ch. |
| Input Voltage Range @ RCA Inputs | 200 mV - 4 V RMS |
| Min.Copper Power / Ground Wire Gauge | 4 AWG wire |
| Fuse Rating | 50 A (AFS, AGU or MaxiFuse™) |
| Signal Processing | |
| Filter Mode(s) | Low-Pass only |
| Filter Slope(s) | 12/24 dB/octave |
| Filter Frequency Range | 50 Hz - 500 Hz |
| Detented, Calibrated Filter Freq. Potentiometer | Yes |
| Filter Defeat Function | Yes |
| Infrasonic Filter | 30 Hz, defeatable |
| Bass Boost EQ | No |
| Output Polarity Switch | No |
| Remote Subwoofer Level Control | Optional HD-RLC or MHD-RLC (water-resistant) |
| Remote Bass EQ Boost Control | No |
| Pass-Through Preamp Output | Buffered |
| Input Voltage | Rated Continuous (RMS) Power @ 14.4 V |
Brand: JL Audio
UPC: 699440986830
Model Number: 010-03116-00
Weight: 5.2
Length: 12
Height: 4
Width: 9
