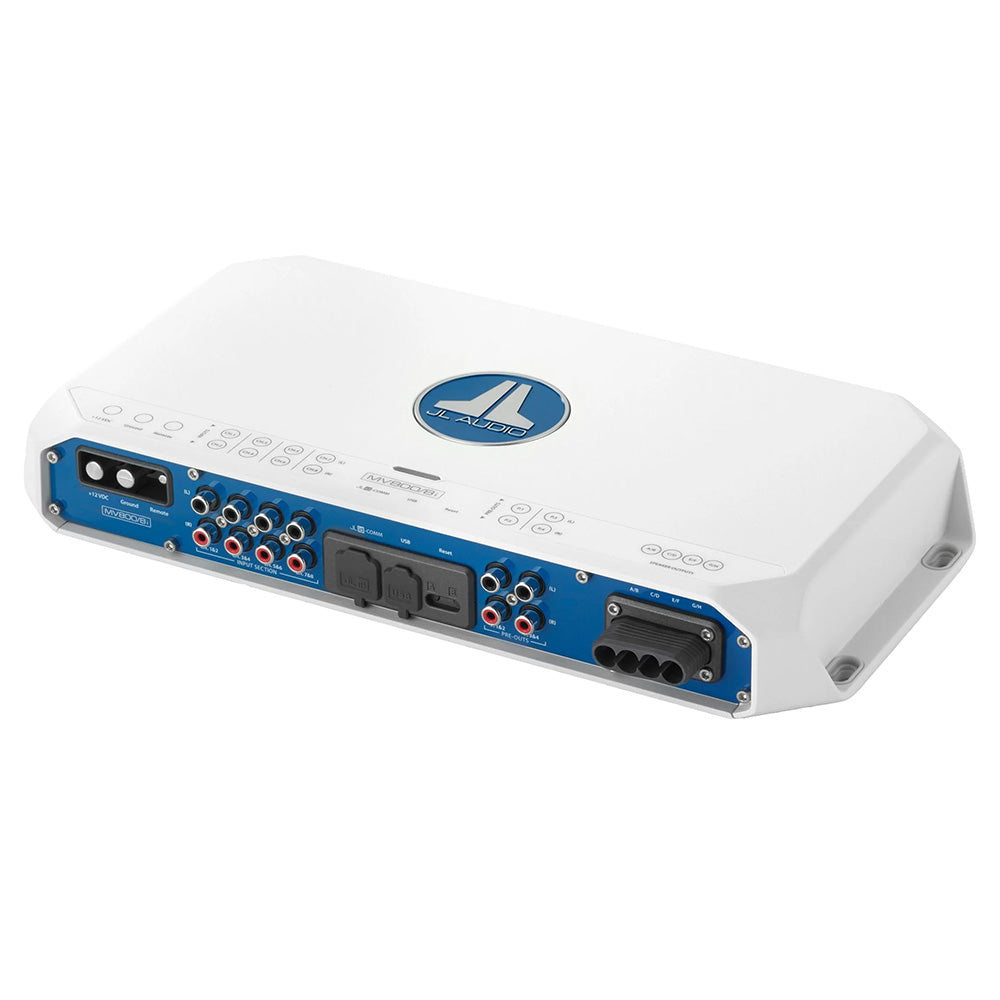

JL Audio MVI Series 800w 8 Channel Amplifier w/Integrated DSP - MV800/8i [010-03339-00]

MVI Series 800w 8 Channel Amplifier with Integrated DSP - MV800/8i

Reference-Grade Power with Digital Signal Processing (DSP) Technology

Featuring state-of-the-art amplifier circuits and built-in tuning capabilities, MVi amplifiers usher in a higher level of marine audio performance with unmatched fidelity and versatility.

• Comprehensive onboard tuning for exceptional sound quiality
• Advanced output design for pristine power and efficiency
• Easy setup at your fingertips with free TüN software
• Unique design adjusts operation to avoid thermal events
• Exceeds international standards for salt, fog and UV exposure
• 3-Year Warranty

Onboard Tuning Power

Each MVi marine amplifier is packed with a complete package of DSP functions, including equalizer, delay, crossover signal routing, mixing and more.

NEXD2™ Technology-Equipped

Innovative, high-speed switching design synchronizes an amplifier’s power supply and output channels, resulting in top-flight fidelity with ultralow noise and distortion.

No Knobs and Switches

TüN® is free software from JL Audio that is used to make all setup and audio adjustments. It’s available for download in a variety of applications for computers and most handheld devices.

Differential-Balanced Inputs

A versatile design accepts speaker level signals without a line-output converter; it also delivers outstanding noise rejection while preventing alternator whine and other noises.

Advanced Rollback Protection

Innovative circuit design ensures that the amplifier will never shut down as a result of thermal overload and keeps the music playing, even under the most demanding conditions.

JLID™ Protocol Command

This proprietary JL Audio protocol provides easy control and communication of all settings for MVi amplifiers and optional JLid accessories.

General

• Warranty: 3 Years
• Channels: 6
• Height: 2.05"
• Width: 13.96"
• Depth: 6.93"
• Weight: 5 lbs
• Operating Voltage: 11-15 vdc

Audio

• Amplifier Class: D
• RMS @ 4 OHM: 75 W x 8/200 W x 4 (Bridged)
• RMS @ 2 OHM: 100 W x 8
• Fuse Rating: 80A
• Recommended Fuse Types: AFS, AGU or MaxiFuse™
• Min. Copper Power/Ground Wire Gauge: 4 awg

Specifications:

• Channels - Available: 8
• Watts: 800w
• Box Dimensions: 4"H x 11"W x 18"L WT: 10 lbs
• UPC: 699440986496
