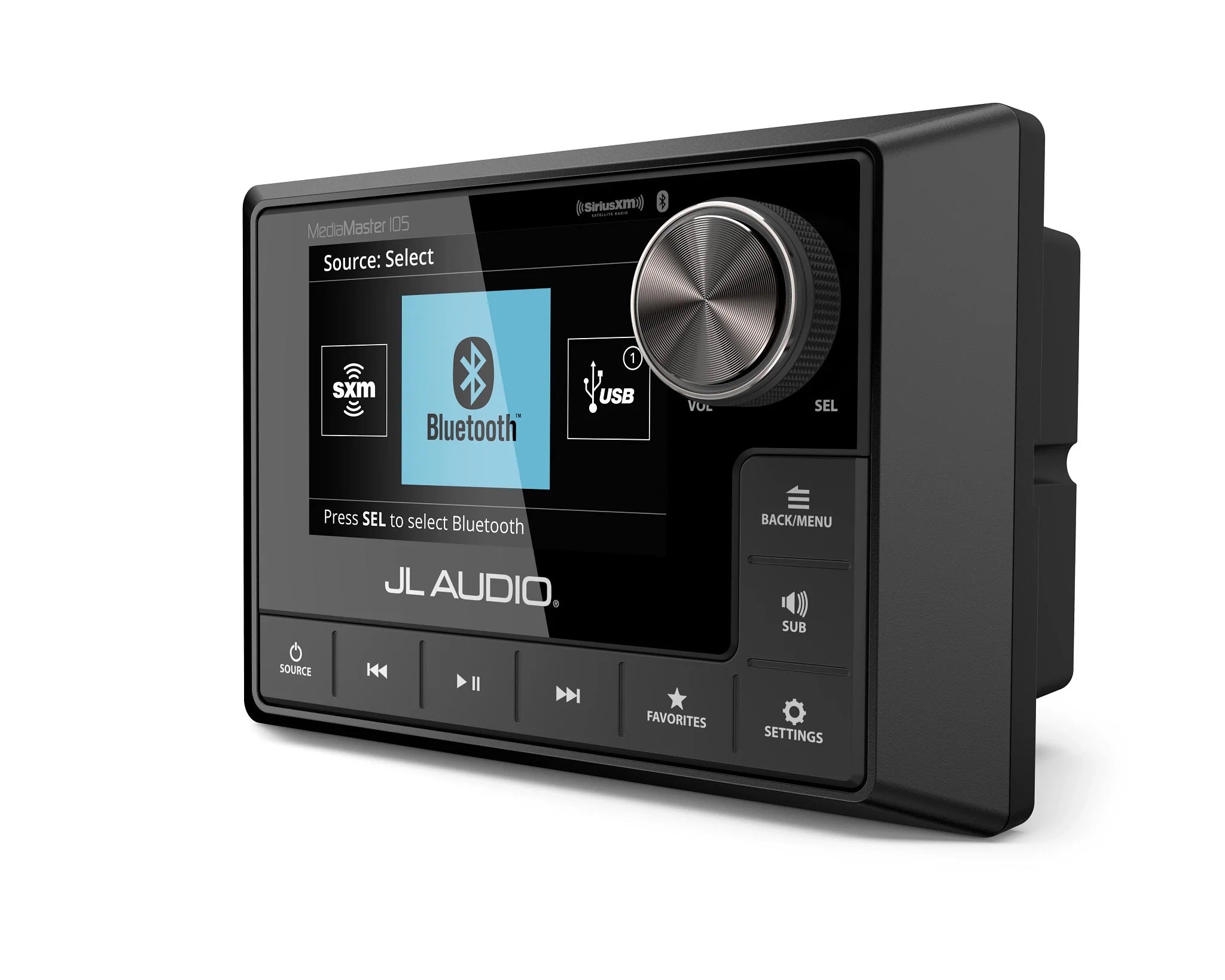

JL Audio MM105 Weatherproof Source Unit with Full-Color LCD Display

Model: MM105
  • Tough, weatherproof (IP67 rated) design and construction to withstand the elements
  • Ultra-bright, easy-to-read, 3.5-inch (89 mm) full-color LCD display with individual settings for day/night lighting and display themes
  • Oversized, illuminated control knob with large backlit buttons sealed behind a watertight membrane
  • Intuitive interface with large text for easy legibility while in motion
  • Independent user settings for display brightness, button brightness and remote controller brightness (optional)
  • 12-channels of audiophile quality, 4V RMS preamp level outputs
  • Available Digital HD RadioTM (North America) and DAB+ Radio (Europe) tuners for the best in broadcast sound quality and selection
  • Global AM/FM radio tuner with RDS (Radio Data System), to display extended FM program info, where available
  • SiriusXM-ReadyTM (tuner, antenna and subscription sold separately)
  • 24 Favorites: store up to 24 of your favorite channels for quick access, across all tuner bands, including Sirius/XM
  • Bluetooth(R) audio streaming with Qualcomm(R) aptXTM for maximum audio fidelity with compatible devices
  • USB1 and USB2 direct-digital connections access music files on your compatible iPhone(R) or USB storage device; includes 1A and 500mA charging outputs
  • AUX1 and AUX2 inputs accepts analog audio signals from a variety of audio sources
  • Certified NMEA 2000(R) Connectivity - MFD (Multi-Function Display) vessel control functionality using applicable network cables and connectors (sold separately).
  • Weatherproof design (IP67 rated) for real marine duty
  • Protective Sun Cover included

Enjoy great audio wherever your adventures might take you, with the MediaMaster(R) 105, a Premium Source Unit designed to withstand anything Mother Nature can dish out. This full-featured source unit delivers top-flight sound performance and advanced audio features specifically designed for marine and powersports applications. Its rugged, weatherproof (IP67 rated) chassis houses an ultra-bright, 3.5-inch full-color LCD display, with separate Day/Night lighting themes for outstanding visibility, even in bright sunshine. When in motion, you will also appreciate the clean user interface with big text and large backlit controls.

Because sound quality is our top priority, the MM105 is not equipped with an internal amplifier designed to drive loudspeakers directly. Instead, it offers twelve channels of audiophile-quality, preamp level outputs to deliver crystal-clear signals to high-quality marine amplifiers. These are deployed via four configurable, nameable audio zones, each with its own set of independent control options, making the MM105 adaptable to a wide range of system types. On-the-fly, level controls make adjusting each or all audio zones a breeze, while a useful volume limit feature ensures that nobody gets blasted inadvertently. All zones feature our Zero-Clipping audio circuit design, with self-limiting tone controls to keep the audio clean at high listening levels, reducing the likelihood of speaker damage.

With certified NMEA-2000(R) connectivity, the MM105 is also an ideal partner to your Garmin, Lowrance, Raymarine or Simrad Multifunction Display! (MFD)

Specifications
Input Operating Voltage
10 - 15.9 VDC
Standby Current Draw 120 mA
Operating Current Draw 1.5 A
Recommended Fuse Value 5 A
Remote Turn-on Capacity 500 mA (max)
Operating Temperature Range -4 F to +158 F (-20 C to +70 C)
Display Size / Type 3.5-inch / TFT LCD backlighted
Display Resolution 320 x 480
Output Channels One stereo pair and mono subwoofer RCA plugs per zone
Output Zones Relative, Absolute, Fixed or Off
Maximum Output Voltage 4V RMS (Relative or Absolute), Selectable 4V/2V/1V RMS (Fixed)
Tuner
FM Tuner with RDS 87.5 MHz to 107.9 MHz (0.2 MHz step)
AM Tuner 530 kHz to 1710 kHz (10 kHz step)
DAB+ Tuner 170 MHz to 230 MHz
Favorites 24 presets across all tuners
Bluetooth(R)
Profile A2DP v1.2, AVRCP v1.4
Core Specification Version 2.1 + EDR
Codec SBC, Qualcomm(R) aptXTM audio
Connection Range Up to 35 ft / 11 m
USB
Interface USB 2.0 host
Maximum Current Output USB1: 1 A / USB2: 500 mA
Supported Audio Formats MP3, MP4, WAV (up to 1411 kbps), AAC, M4A, M4B
Apple Compatibility iPhone 5 or beyond (functionality contingent upon compatible iOS release)

What's in the Box:
  • MMC-105
  • Gasket
  • Cover
  • Harbess
  • Screw x 4
  • Template


WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Brand: JL Audio

UPC: 699440999304

Model Number: 010-03132-00

Weight: 3.28
