Garmin Panoptix PS30 Down Transducer [010-01284-00]

Panoptix™ PS30 Down Transducer

All-Seeing Sonar

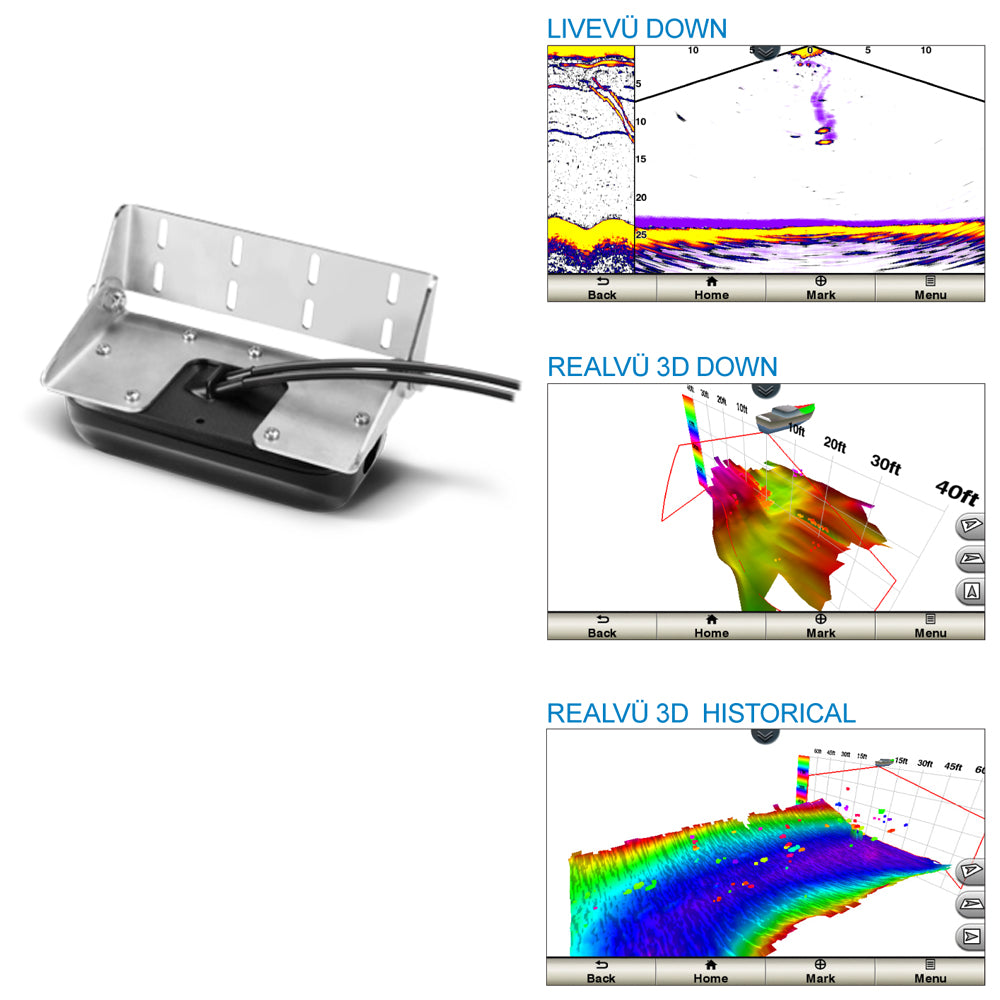

With the Panoptix™ Down Transducer, you can actually see fish and bait swimming around under your boat - in real time; even while stationary. You get 3 remarkable views: LiveVü Down, RealVü 3-D Down and RealVü 3-D Historical.

LiveVü Down
Provides real-time moving sonar images. You can see fish swimming toward or away from the boat. You can see small baitfish and large target fish swimming around, even your lure.

RealVü 3-D Down
Allows your boat to be stationary and still see things in 3-D around your boat. It shows history of only 1 sweep.

RealVü 3-D Historical
Used for finding fish while your boat is moving. This shows the entire water column you have passed over in 3-D, from the bottom of the surface and all of the fish in between.

All-Seeing is Believing
Garmin is the first to bring Panoptix sonar imaging to your boat. Panoptix all-seeing sonar is unlike anything you've ever seen on the water. It gives you the ability to see all around your boat in real-time. You can see fish in the water column in 3-D. You can also see your bait cast into the water and watch it as you reel it in. You can see fish swimming in front of or below your boat. You can even see them chase your lure. But to truly appreciate Panoptix, you have to see it. Transducer transom mounting kit included.

In The Box:

• PS30 down looking transducer (integrated 30 ft network cable, 15 ft power cable)

• Transom mount

• Split ring RJ45 connector

• Software update microSD card with adapter

• Documentation

• echoMAP™ 70 Series

• GPSMAP® 7xx/7xxx Series

• GPSMAP® 8xxx Series

• GPSMAP® 85xx Black Box

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Temperature: No
• Speed Included: No
• Pins: Bare Wires
• Mounting Style: Transom
• Imaging: Down/Forward
• Chirp: No
• Cable Length (Feet): 30ft. Network/15ft. Cable
• Box Dimensions: 8"H x 10"W x 12"L WT: 6 lbs
• UPC: 753759132392
