Garmin GT30-THP SS Thru-Hull Pair DownVu/SideVu Scanning Transducer w/Temp f/Hull Deadrises 5-25 [010-01961-11]

Garmin GT30-THP - Stainless Steel Thru-hull Pair DownVü/SideVü 500W (CHIRP 455/800 kHz) Scanning Transducers with Temp, for Hull Deadrises from 5° to 25° (12-pin)

Get ultra-clear sonar pictures of objects, structure and fish that pass below and to the side of your boat with these 12-pin thru-hull transducer with stainless steel stems.

These transducers with built-in fast response temperature sensors have a power rating of 500 W per element (1,500 W total); a depth of 750 ft (DownVü) and 500 ft left and right (SideVü); an operating frequency of CHIRP 455/800 kHz; for hull deadrises from 5 degrees to 25 degrees. Pair them with your GCV™ 10 scanning sonar module.

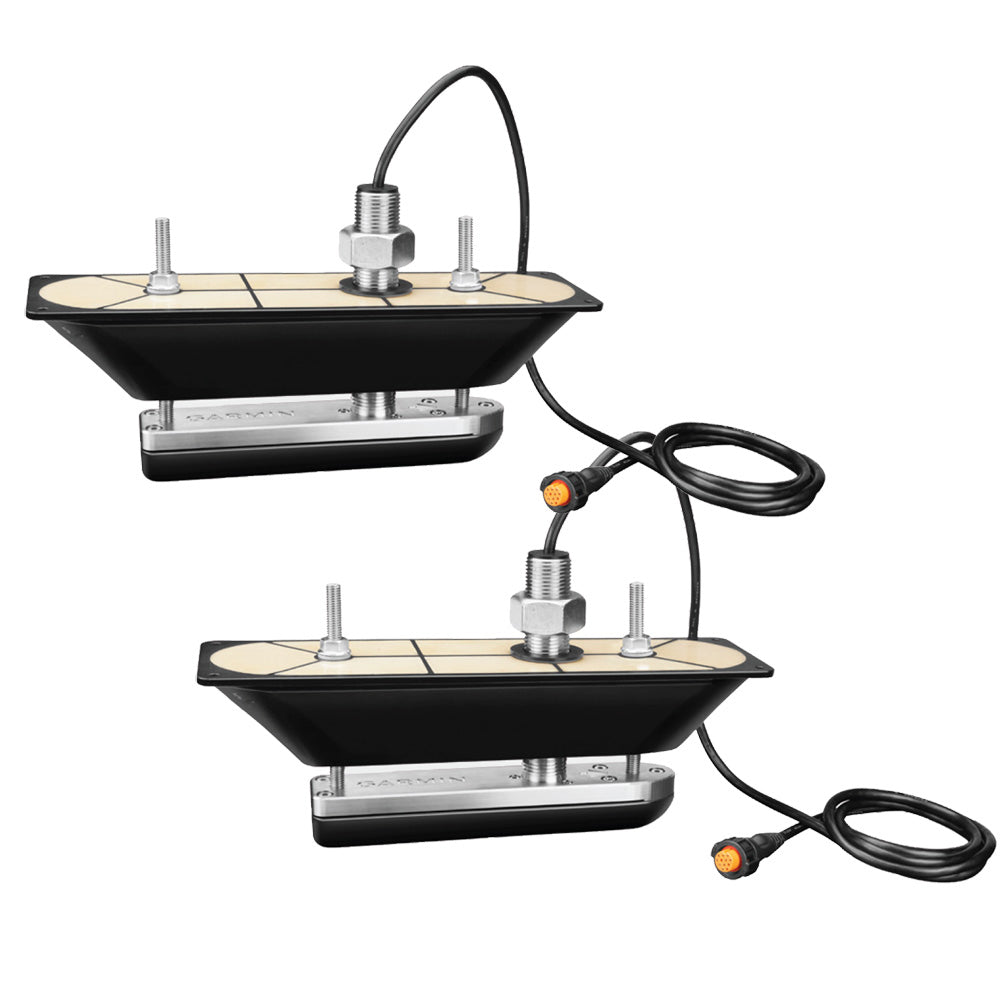

Includes 12-pin port and starboard transducers with stainless steel stems, isolation bushings, fairing blocks, Y-cable, mounting hardware and installation instructions. Follow the instructions carefully to avoid damaging your boat.

Compatible Devices:

• GCV™ 10 Scanning Sonar Module

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Chirp: Non Traditional
• Cable Length (Feet): 5' + 30' y-extension
• Temperature: Yes
• Speed Included: No
• Pins: 12
• Mounting Style: Thru-Hull
• Imaging: Down/Side
• Box Dimensions: 5"H x 12"W x 14"L WT: 10 lbs
• UPC: 753759152819
