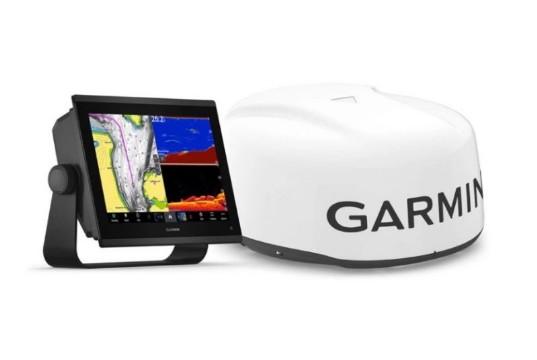

Garmin GPSMAP® 1243xsv SideVü, ClearVü and Traditional CHIRP Sonar with Garmin Navionics+™ and GMR18HD3 radar Dome
Model: 010-02367-53With its sleek design, powerful processing and upgraded IPS display, this advanced 12" chartplotter/sonar combo integrates seamlessly into your Garmin marine system.
Get built-in Ultra High-Definition SideVü and ClearVü scanning sonars with vivid, high-contrast color palettes to help distinguish fish from structure. GPSMAP 923xsv also supports 1 kW CHIRP traditional sonar capabilities.
Pair with Panoptix or Panoptix LiveScope™ easy-to-interpret live sonar (transducer sold separately) to see all around your boat in real time.
With its ultrasleek design, vivid sonar color palette and high-resolution 12" in-plane switching display, this large format chartplotter/sonar combo offers improved sunlight readability and wide-angle visibility.
If you have multiple compatible Garmin devices on your boat, you can share information — such as maps, user data, radar and IP camera video — among them.
Connect to compatible autopilots, digital switching, weather, Fusion-Link™ audio system, media, VHF, AIS and more from one screen.
Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications, software updates, Garmin Helm™ digital switching, Garmin Quickdraw™ Community data and more.
Connect with some of your favorite devices, such as quatix® marine watches, gWind™ Wireless 2 transducers, GNX™ Wind marine instruments and wireless remote controls.
Now you can connect your chartplotter to different kinds of engines, including select Yamaha engines.
This exclusive feature brings together all the operations and capabilities of select third-party devices, such as EmpirBus™ digital switching, on one screen.
Connect with some of your favorite devices, such as quatix® marine watches, gWind™ Wireless 2 transducers, GNX™ Wind marine instruments and wireless remote controls.
Now you can connect your chartplotter to different kinds of engines, including select Yamaha engines.
This exclusive feature brings together all the operations and capabilities of select third-party devices, such as EmpirBus™ digital switching, on one screen.
Navigate any waters with preloaded Garmin Navionics+™ charts and mapping
Specifications| General | |
| PHYSICAL DIMENSIONS | 12.1" x 8.9" x 3.2" (30.8 x 22.8 x 8.2 cm) |
| DISPLAY SIZE | 10.3" x 6.4"; 12.1" diagonal |
| DISPLAY RESOLUTION | 1280 x 800 pixels |
| DISPLAY TYPE | WXGA display |
| WEIGHT | 6.6 lbs. (3.0 kg) |
| WATER RATING | IPX7 |
| POLARIZED SUPPORT | Yes |
| POWER CONSUMPTION | Max power usage at 10 Vdc: 26.5 W Typical current draw at 12 Vdc: 1.7 A Max current draw at 12 Vdc: 2.2 A |
| ANTENNA | Internal or external over NMEA 2000 |
| MOUNTING OPTIONS | Bail, flush or flat |
| RECEIVER | 10 Hz high-sensitivity |
| GARMIN MARINE NETWORK™ PORTS | 2 |
| TRANSMIT POWER | 1 kW traditional; 1 kW CHIRP |
| Maps & Memory | |
| PRELOADED MAPS | Garmin Navionics+™ |
| ACCEPTS DATA CARDS | 2 microSD™ cards (back of unit) |
| WAYPOINTS | 5,000 |
| TRACK LOG | 50,000 points; 50 saved tracks |
| ROUTES | 100 |
| Outdoor Recreation | |
| TIDE TABLES | Yes |
| Chartplotter Features | |
| GARMIN RADAR COMPATIBLE | Yes |
| GARMIN SONAR COMPATIBLE | Yes (built-in) |
| GARMIN SMARTMODE COMPATIBLE (CUSTOMIZABLE MONITOR PRESETS) | Yes |
| SUPPORTS AIS (TRACKS TARGET SHIPS POSITION) | Yes |
| SUPPORTS DSC (DISPLAYS POSITION DATA FROM DSC-CAPABLE VHF RADIO) | Yes |
| SUPPORTS FUSION-LINK™ COMPATIBLE RADIOS | Yes |
| GSD™ BLACK BOX SONAR SUPPORT | Yes |
| GCV™ BLACK BOX SONAR SUPPORT | Yes |
| ACTIVECAPTAIN COMPATIBLE | Yes |
| GRID™ (GARMIN REMOTE INPUT DEVICE) COMPATIBLE | Yes |
| WIRELESS REMOTE COMPATIBLE | Yes |
| SAILING FEATURES | Yes |
| Sonar Features & Specifications | |
| DUAL-FREQUENCY (50/200 KHZ) SONAR CAPABLE | Yes |
| DUAL-BEAM (77/200 KHZ) SONAR CAPABLE | Yes |
| FREQUENCIES SUPPORTED | Traditional: 50/77/83/200 kHz CHIRP (low, medium, high) ClearVü (260/455/800 kHz) (dependent on transducer) |
| CHIRP SONAR TECHNOLOGY | Yes (Built-in) |
| CLEARVü | Yes with CHIRP (built-in) |
| SIDEVü | Yes with CHIRP (built-in) |
| MAXIMUM DEPTH | 5,000 ft at 1kW (depth capacity is dependent on water bottom type and other water conditions) |
| BOTTOM LOCK (SHOWS RETURN FROM THE BOTTOM UP) | Yes |
| WATER TEMPERATURE LOG AND GRAPH | Yes |
| SONAR RECORDING | Yes |
| SONAR HISTORY REWIND | Yes |
| Connections | |
| NMEA 2000® COMPATIBLE | Yes |
| TRANSDUCER PIN NUMBERS | 12-pin (orange) |
| NMEA 0183 INPUT PORTS | 1 |
| NMEA 0183 OUTPUT PORTS | 1 |
| VIDEO INPUT PORTS | 1 BNC |
| VIDEO OUTPUT PORTS | 1 HDMI |
| WIRELESS CONNECTIVITY | Yes |
| J1939 COMPATIBLE | Yes |
Brand: Garmin
UPC: 753759326036
Model Number: 010-02367-53
Weight: 7
Length: 13
Height: 4
Width: 9
