Garmin GLS10 Sonar Module Replacement for LiveScope

Garmin GLS10 Sonar Module Replacement for LiveScope

Vendor: Garmin
SKU: wt-GAR0101295400
Availability: In stock
Product type: Fishfinder - Blackbox
$898.83
$898.83
$898.83
Subtotal: $898.83
Description
Description
x

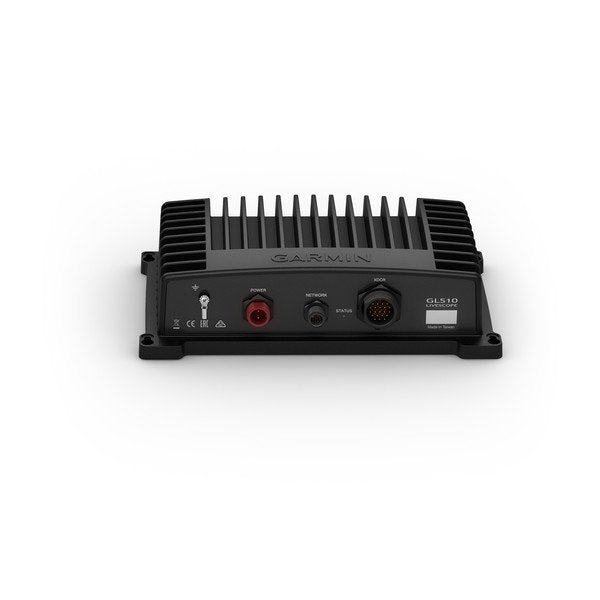

Garmin GLS10 Sonar Module

Model: 010-12954-00

The easy-to-install, networkable GLS 10 sonar black box allows you to see live, real-time scanning sonar. Add the LVS32 transducer model to see easy-to-interpret live scanning sonar images of structure, bait and fish swimming below and around your boat. And you can share sonar images seamlessly across multiple networked chartplotters.

Requires LVS32, not included

Specifications
Physical dimensions
9.6 in x 5.9 in x 2.6 in (24.5 x 14.9 x 6.5 cm)
Weight 4.3 lbs (2.0 kg)
Water rating IPX7
Garmin Marine NetworkTM ports 1 (small connector)
Temperature range Operating: -15 C to 70 C
Sonar Features & Specifications
Frequencies supported 530 - 1,100 kHz
Transmit power 500 W
Maximum depth Down and Forward: 200 feet (61.0 m)
Electrical
Power input 10-32 V
Power usage 21 W typical, 58 W max
Fuse 7.5 A

What's in the Box:
  • GLS 10 sonar module
  • Power cable
  • 2 meter Garmin marine network cable, small connector
  • Network adapter cable
  • Mounting hardware
  • Documentation


WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Brand: Garmin

UPC: 753759237066

Model Number: 010-12954-00

Weight: 6.38
