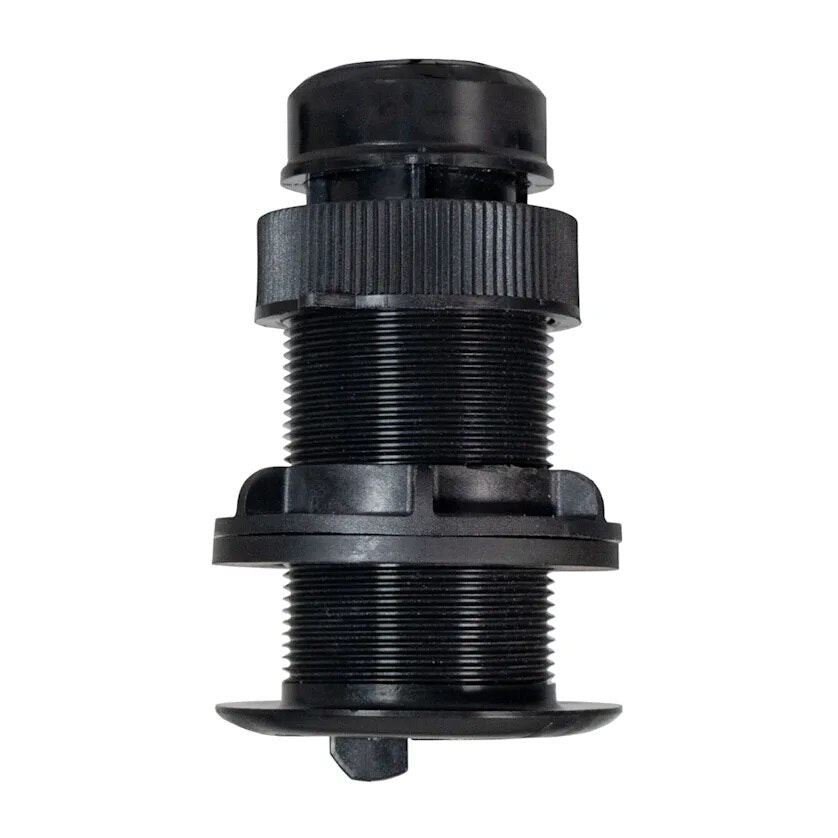

Garmin DST820 Smart Transducer with Plastic Housing

Model: 010-11051-30

This plastic thru-hull NMEA 2000? smart transducer combines precise depth, speed and temperature signals with attitude sensing for heel/trim and pitch/roll data. It can read depths to 330 feet and offers fast 5 Hz water speed signal output for smoother visualization on compatible chartplotters or other displays.

Wireless Bluetooth? connectivity makes it easy to manage calibration of sensor data through the AIRMAR Cast? app interface. And the 235 kHz sensor operating frequency helps prevent mutual interference with other echosounder devices on the vessel. The transducer's wide, fan-shaped beamwidth of 10 x 44 degrees enables it to find bottom even when installed on steep deadrise hulls or heeling sailboats.

Specifications

General
Transducer frequency 235 kHz
Transducer power 100 W
Transducer beamwidth 10 x 44 degrees
Transducer maximum depth 330 ft
Transducer depth/speed/temperature Depth, Temperature and Speed
Connector NMEA 2000
Transducer supported deadrise/transom angles 0 to 22 degrees
Transducer Support
Transducer frequency 235 kHz


WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Brand: Garmin

UPC: 753759381813

Model Number: 010-11051-30

Weight: 2.2
