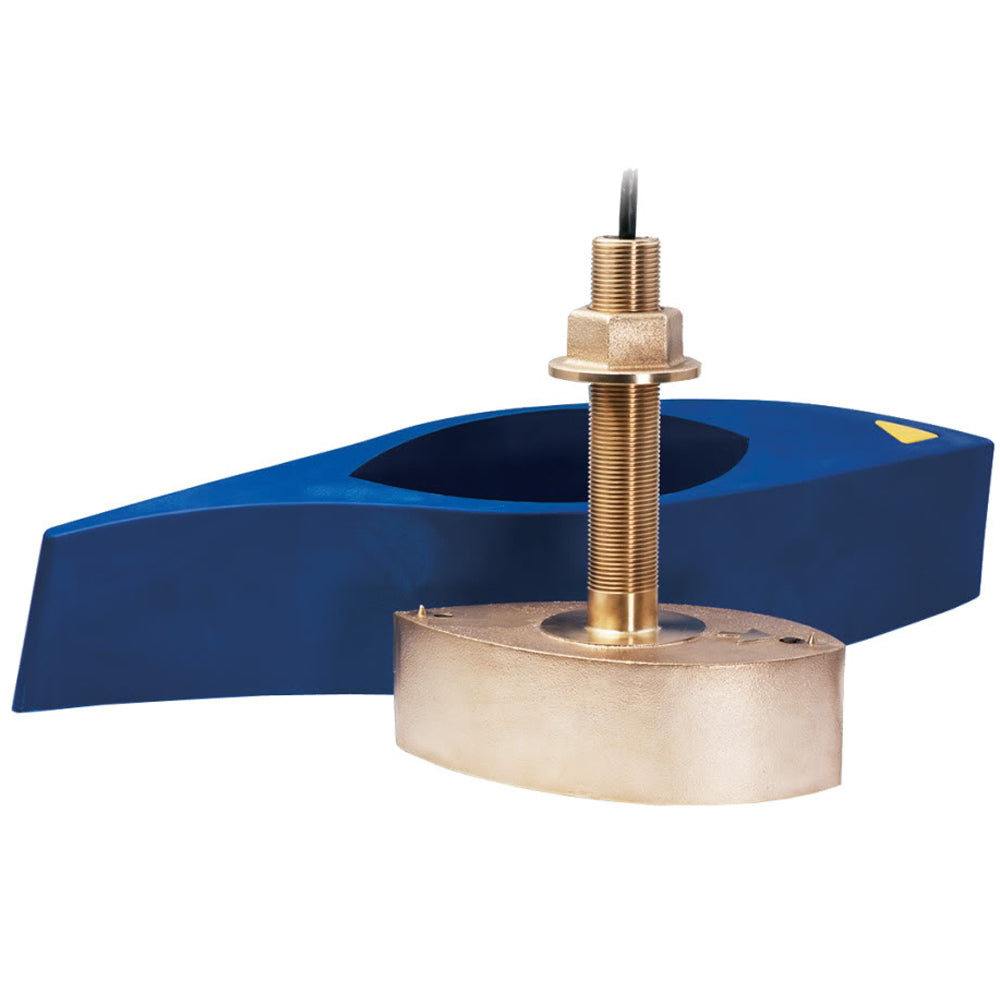

Garmin B265LH Bronze Thru-Hull Mount Transducer w/Depth & Temp - 12-Pin [010-12379-20]

B265LH Bronze Thru-Hull Mount Transducer w/Depth & Temp - 12-Pin

Garmin's best performing 1 kW thru-hull transducer, this mount performs well in deep water and has exceptional bottom and water column detail.

This transducer has a depth of 3,000 feet; an operating frequency of 42 to 65 kHz and 130 to 210 kHz; a beamwidth of 16 to 25 degrees and 6 to 10 degrees; and a 0 to 20 degree deadrise.

Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.

Compatible Devices:

• GPSMAP® 7607xsv, 7608xsv, 7610xsv, 7612xsv, 7616xsv

• GSD™ 25 Premium Sonar Module

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Mounting Style: Thru-Hull
• Temperature: Yes
• Speed Included: No
• Imaging: Standard
• Chirp: Low/High
• Cable Length (Feet): 39'
• Pins: 12
• Box Dimensions: 7"H x 19"W x 26"L WT: 24.2 lbs
• UPC: 753759142414
