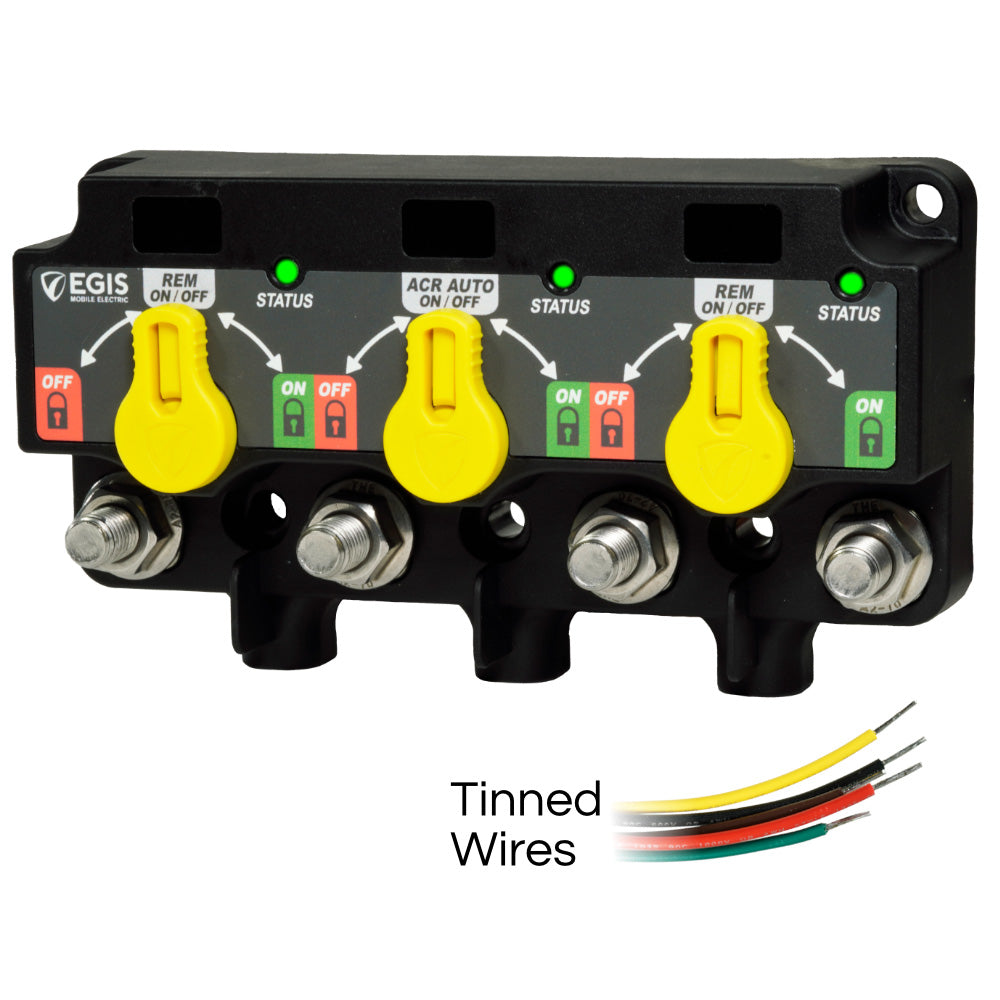

Egis XD Flex 1 Triple Relay/ACR/LVD w/Knob - Tinned Wires [8730-1111]

XD Flex 1 Triple Relay/ACR/LVD with Knob - Tinned Wires

Features:

• 500 Amp Continuous Capability Per Relay / Extremely Compact Footprint
• Available With or Without Intuitive Front Facing Manual Override Knob with the ability to Lock Relays ON or OFF for Servicing
• Flexible Functionality via Dip Switches, utilize each as a Relay/Battery Disconnect, Automatic Charging Relay, or Low Voltage Disconnect
• Supports Single/Multiple Engine Installations with Dual Start/Engine Isolation Inputs
• Remote ON/OFF/Auto Inputs allow forced close or open, or allow automatic operation based on Voltage Sensing
• Local and Remote LED Indicators for Each Relay

Specifications:

• Type: Electric
• Box Dimensions: 3"H x 6"W x 8"L WT: 2.66 lbs
• UPC: 850053879975
