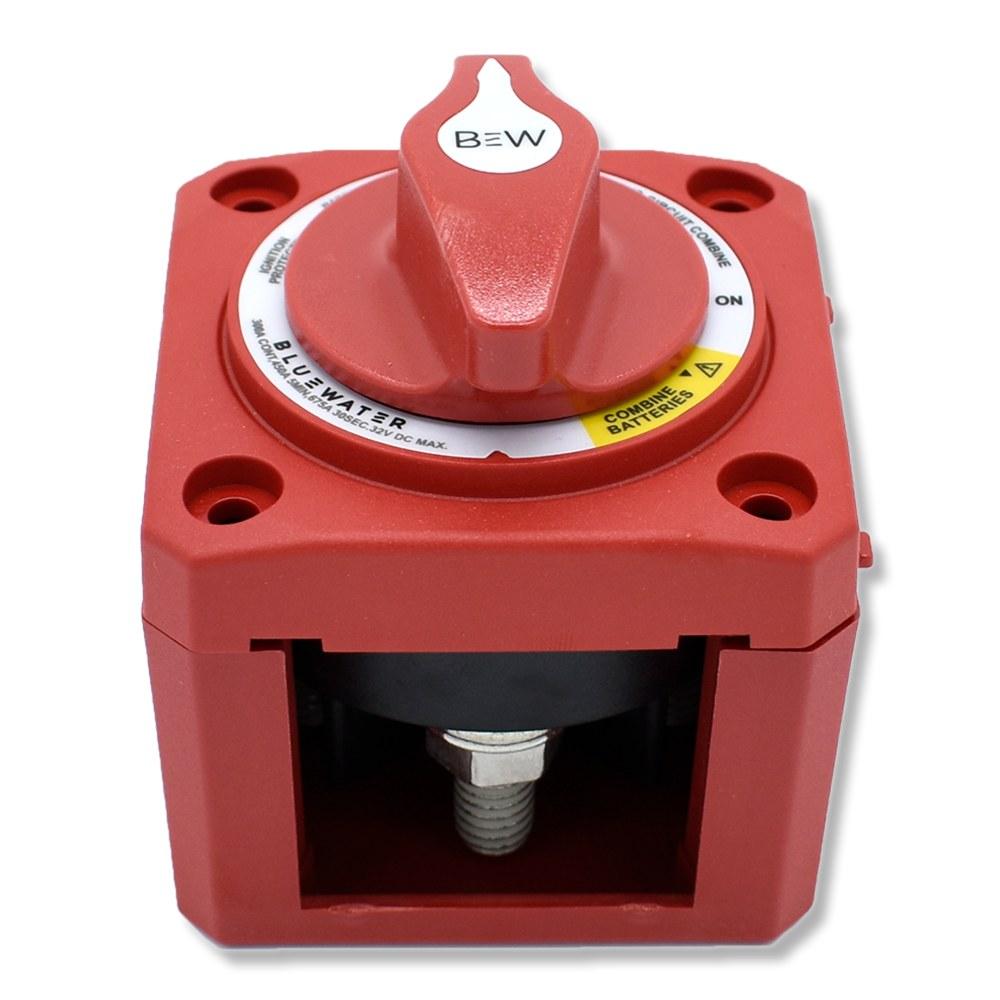

Bluewater Dual Circuit Plus Battery Switch, Off/On/Combine, 300A, Surface Mount with Base, Red

Bluewater Dual Circuit Plus Battery Switch, Off/On/Combine, 300A, Surface Mount with Base, Red

Vendor: Bluewater Enterprises
SKU: wt-BWE980001111
Availability: Out Of Stock
$71.95
$71.95
$71.95
Subtotal: $71.95
Description
Description
x

Bluewater Dual Circuit Plus Battery Switch, Off/On/Combine, 300A, Surface Mount with Base, Red

Model: 9800-011-11
  • Dual Circuit Isolation - Keeps start and house circuits separate during normal operation.
  • Emergency Combine - Parallel mode links batteries for dependable backup starting power.
  • Heavy-Duty Rating - 300A continuous, 450A intermittent and 675A cranking.
  • Heavy-Duty Studs - 3/8"-16 tin-plated copper studs accept 3/8" and M10 ring terminals, with 7/8" stud length for multiple cables.
  • Surface Mount - Includes a base for surface mounting.

The Bluewater Dual Circuit Plus switch builds on the standard dual circuit configuration by adding an emergency parallel (Combine) function. It's ignition protected for gasoline-powered boats and suited to RV applications.

It's built from non-corrosive marine-grade metals and reinforced polycarbonate, with tactile knob textures to confirm position by feel. International ON/OFF legends and an icon label set are included.

Specifications
Positions Off / On / Combine
Continuous Rating 300A DC
Intermittent Rating 450A DC (5 min)
Cranking Rating 675A DC (30 sec)
Max Voltage 32VDC
Studs 3/8"-16 tin-plated copper, 7/8" length
Cable Size Up to 4/0 AWG
Mounting Surface mount (with base)
Knob Color Red


WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Brand: Bluewater Enterprises

UPC: 810196331228

Model Number: 9800-011-11
