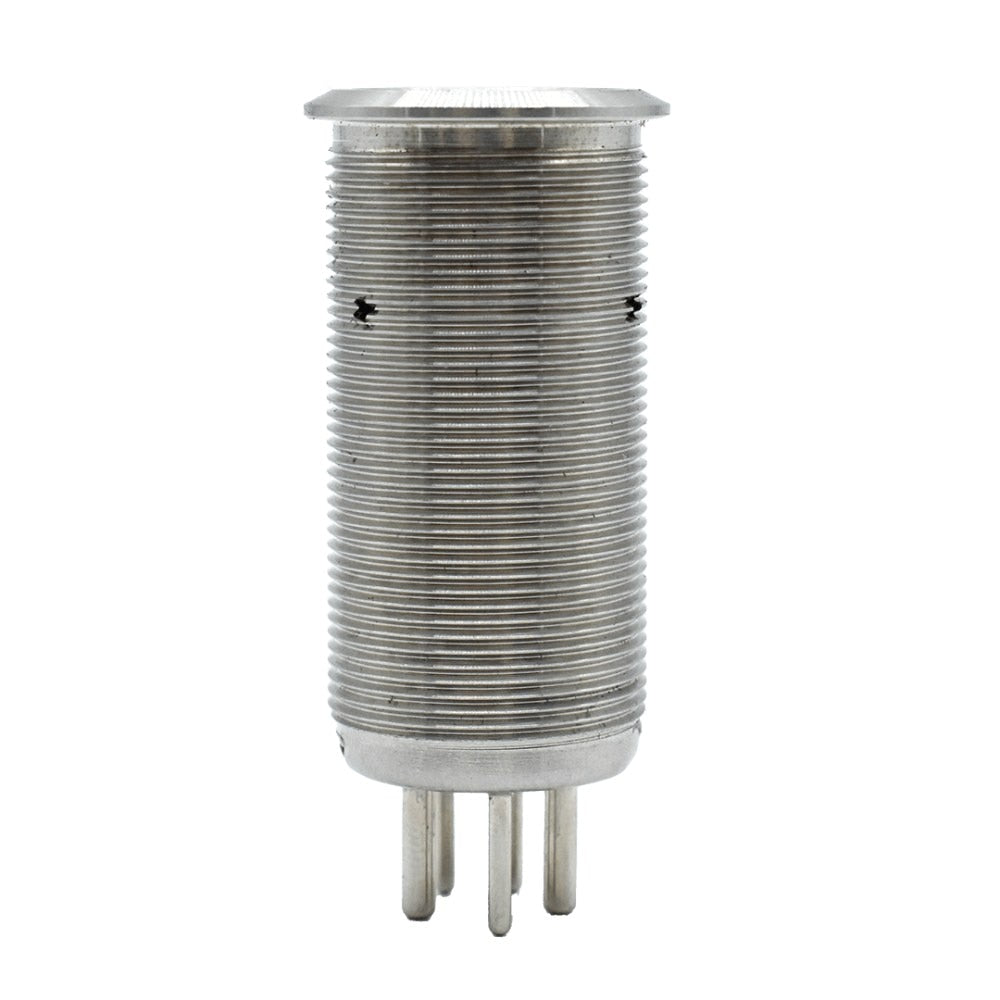

Bluewater 19mm Electronic Off-On-On-Both Switch

Model: 9057-3115
  • Four-State Control - Cycle through Load 1, Load 2, both loads and off with a single push button.
  • Compact 19mm Design - Low-profile switch for tight dashboards and crowded panels.
  • IP69K Waterproof - Sealed to withstand salt spray, washdowns and full submersion.
  • SS316 Stainless Bezel - Corrosion-resistant construction for harsh marine environments.
  • Plug-In Installation - Proprietary Deutsch-style connector for fast, clean wiring and easy switch swaps.

The Bluewater 9057-3115 controls two loads individually or together from one compact 19mm switch, with LED colors that show which state is active.

Built for boat builders, marine technicians and anyone upgrading an electrical system where space is limited, the 9057 Series features a fully detachable, customizable actuator.

Installation: Drill a 19mm hole (up to 6mm material thickness) and plug in a Bluewater 19mm Deutsch-style harness.

Specifications
Function Off-On-On-Both (latching, dual channel)
LED Indicators Green Load 1 / Red Load 2 / Yellow both / Blue off
Voltage/Current 7.5A per channel @ 12-24VDC
Protection Rating IP69K
Mounting Hole 19mm, panels up to 6mm thick
Material Nickel-plated brass / SS316 stainless steel
Mechanical Life 50,000 cycles
Electrical Life 10,000 cycles
Connector Deutsch-style (19mm harness 9057-4914 sold separately)


WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Brand: Bluewater Enterprises

UPC: 810196330825

Model Number: 9057-3115
