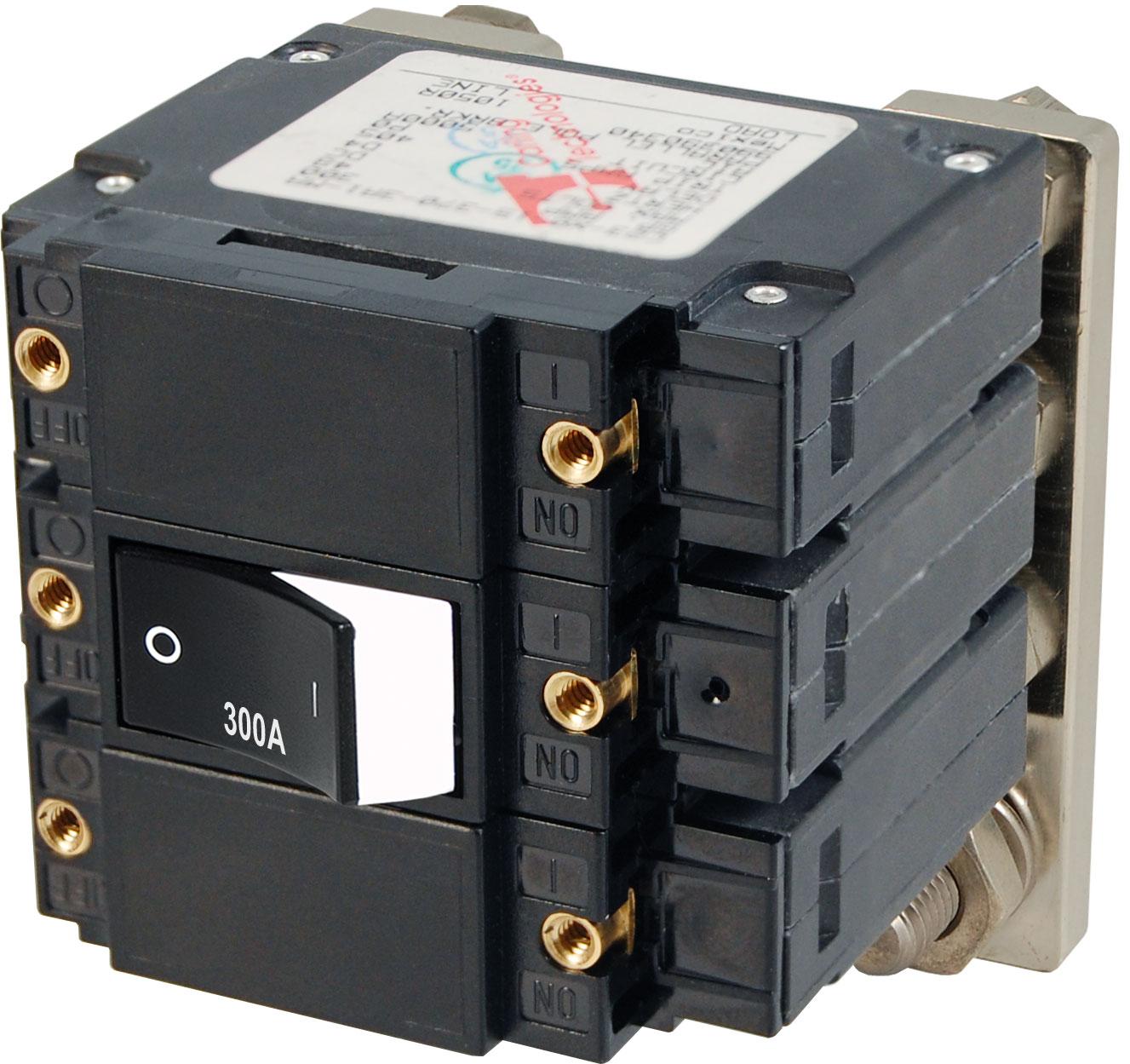

Blue Sea Systems C-Series Flat Rocker Circuit Breaker - Triple Pole 300A

Model: 7554-BSS
  • Paralleled poles have 5/16" stud on bus
  • Rocker actuator is flush in the "ON" position, eliminating the risk of accidental switching
  • Color actuator indicates "OFF" position
  • Provides overcurrent protection for inverters, bow thrusters, and windlasses
  • Combines switching and circuit protection into a single device
  • "Trip Free"-cannot be held closed after trip
Specifications
Amperage 300A DC
Actuator Style Flat Rocker
Poles 3
Maximum Voltage 120V AC / 240V AC / 48V DC
Circuit Breaker Type Magnetic Hydraulic - trip free
Terminal Stud 1/4-20 Tin-Plated Brass
Terminal Stud Torque 35 in-lb (3.95 Nm)
Interrupt Capacity 5000A @ 48V DC
Minimum Operating Temperature -40 deg C
Maximum Operating Temperature 85 deg C
Mounting Screw 6-32 Stainless Steel
Mounting Screw Torque 6 in-lb (0.68 Nm)
Switching Cycles 10000
Weight 0.93lb (0.42 kg)


WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Brand: Blue Sea

UPC: 632085075545

Model Number: 7554-BSS

Weight: 0.93
