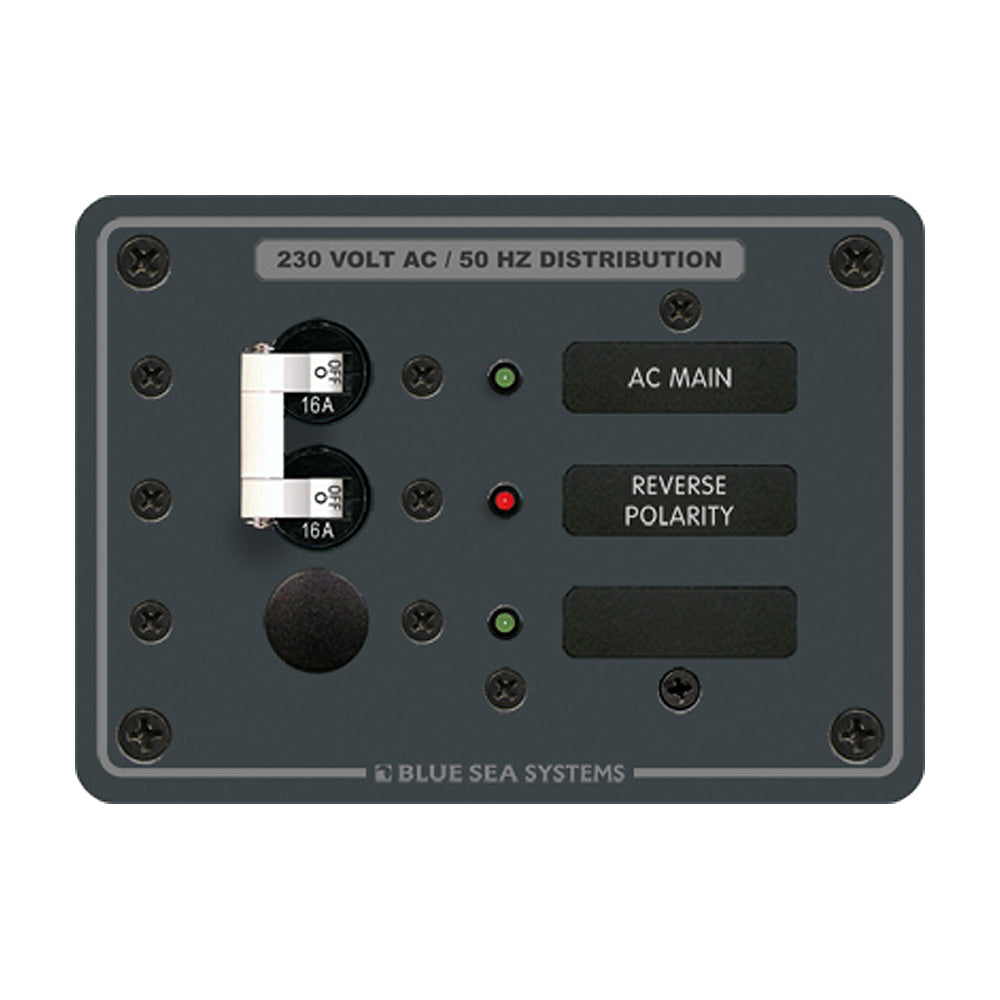

Blue Sea 8129 AC Main + Branch A-Series Toggle Circuit Breaker Panel (230V) - Main + 1 Position [8129]

230V AC Main + Branch A-Series Toggle Circuit Breaker Panel

PN: 8129
White Switches

• 230V

• Red reverse polarity indicating LED

• All hot, neutral and safety ground buses installed, fully pre-wired

• All circuit label positions are backlit on standard panels - No kit required

• "ON" indicating LEDs installed in all circuit positions

• Maximum panel amperage - 50 Amperes

• MIL-C-5541C or equivalent immersion undercoating for lifetime corrosion resistance

• Two-part polyurethane slate gray finish

• Heavy 1/8" aluminum 5052 alloy

• Industry standard height and width

• Countersunk mounting holes throughout

• Detailed installation instructions and cutout template included

• Includes set of 30 common Large Format Labels

• Over 500 individual Labels available

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Max Breaker Quantity: 1
• AC/DC: AC
• Voltage: 230v
• Box Dimensions: 4"H x 8"W x 9"L WT: 1 lbs
• UPC: 632085081294
