Airmar TM185C Transducer Medium CHIRP Ultra Wide With Humminbird 21-Pin MMC

Airmar TM185C Transducer Medium CHIRP Ultra Wide With Humminbird 21-Pin MMC

Vendor: Airmar
SKU: wt-AIRTM185CMW21HB
Availability: In stock
$2,741.25
$3,015.38
$2,741.25
Subtotal: $2,741.25
Description
Description
x

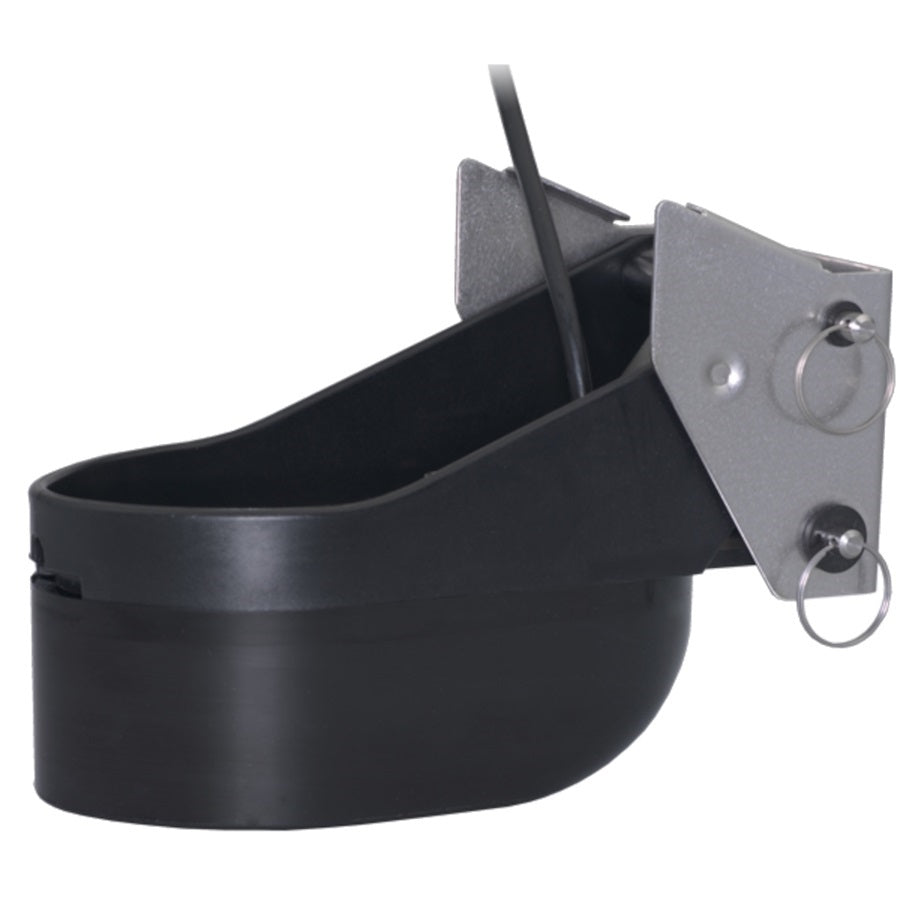

Airmar TM185MW Medium Ultra-Wide Chirp-ready Transom Mount with MMC-21HB Humminbird 21-Pin MMC Cable

Model: TM185C-MW-21HB
  • Depth and fast-response water-temperature sensor
  • 1 kW with depth tracking down to 400 m (1,300 feet)
  • Medium frequency: 60-100 kHz
  • 57 deg to 73 deg beamwidth (port/starboard)
  • 16 deg average fore/aft
  • 40 kHz of total bandwidth from one transducer
  • Medium frequency for superior mid-depth performance and excellent fish-target separation
  • Simple installation on transom of the boat
  • Great performance at boat speeds below 30 knots
  • Easy maintenance and low-cost replacement
  • Exclusive Xducer ID(R) technology

AIRMAR's innovative transducer designs have revolutionized the fishing world, and they continue to do so with the NEW Chirp-ready TM185 Medium Ultra-Wide (MW) Transom Mount transducer. The TM185MW takes transducer design and performance to a whole new level by using medium frequency (60-100 kHz) with an incredible ultra-wide beamwidth ranging from 57-73 deg port-starboard to 16 deg average fore-aft. Maximum coverage under the boat is achieved with this medium-frequency transducer, serving anglers who target pelagic species in the upper water column. Airmar's new Medium Ultra-Wide models are perfect for seeking deeper species with a frequency band from 60-100 kHz.

The TM185MW Transom Mount is a 1 kW transducer housed in one of AIRMAR's most popular housings. Transom models are best suited for small and trailered vessels where a thruhull installation is not practical. Simple to install and ideal for small trailered vessels where a thru-hull may interfere with loading.

Specifications
Power Rating
1 kW
Transom Angle 2 deg to 22 deg
Functions Depth, Temperature
Acoustic Window Urethane
Cable-Length 9 m (30 feet)
Freq Med Wide 60-100 kHz
Housing Urethane/Stainless Bracket
Max Depth 400 m (1300 feet)
Medium-Wide Beamwidth 57 deg to 73 deg beam p/s 16 deg average f/a
Mounting Style Transom
Single or Dual Frequency CHIRP-Ready Single-Band
Weight 4.2 kg (9.2 lb.)

What's in the Box:
  • TM185MW Medium Ultra-Wide Chirp-ready Transom Mount
  • MMC-21HB Humminbird 21-Pin MMC Cable

Brand: Airmar

Model Number: TM185C-MW-21HB

Weight: 9
