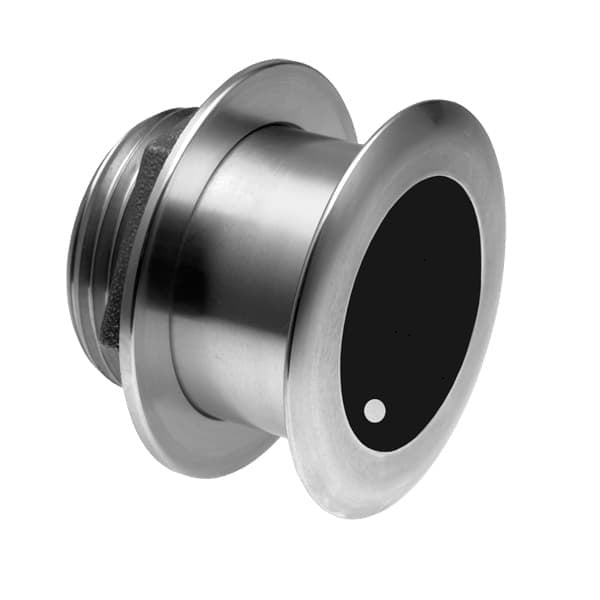

Airmar SS175C-20-H 20d Tilt

High CHIRP with Raymarine 11-Pin

Model: SS175C-20-H
  • Depth and fast-response water-temperature sensor
  • 1 kW with a maximum depth of 304 m (1000 feet)
  • High Frequency: 130 kHz to 210 kHz10 deg to 6 deg beamwidth
  • 80 kHz of total bandwidth from one transducer
  • High frequency provides superior shallow water performance, bottom detail and fish target separation
  • Recommended boat size: Up to 11 m (36 feet)
  • Stainless steel housing is compatible with all hull types and materials
  • Also available in a bronze housing (B175H) model
  • Exclusive Xducer ID(R) technology

Airmar's low profile Chirp-ready transducer models are the perfect addition to smaller boats such as center consoles. The low frequency band is the deep water performer delivering excellent coverage and tracking in deeper depths. The SS175L transducer delivers up to 20 kHz of total bandwidth in just one installation and delivers tremendous deep water performance.

Because the transducer is installed almost flush to the hull, when the transducer is installed the tilt corrects for the hull deadrise and orients the ceramic element horizontally to assure maximum echo returns to the transducer.

Specifications
Weight
2.7 kg (6 lb)
Hull Deadrise 16 deg to 24 deg hull deadrise
Acoustic Window Urethane
Hole Size 98 mm (3-7/8)
One internal ceramic assembly
"

Brand: Airmar

Model Number: SS175C-20-H-11R

Weight: 12
