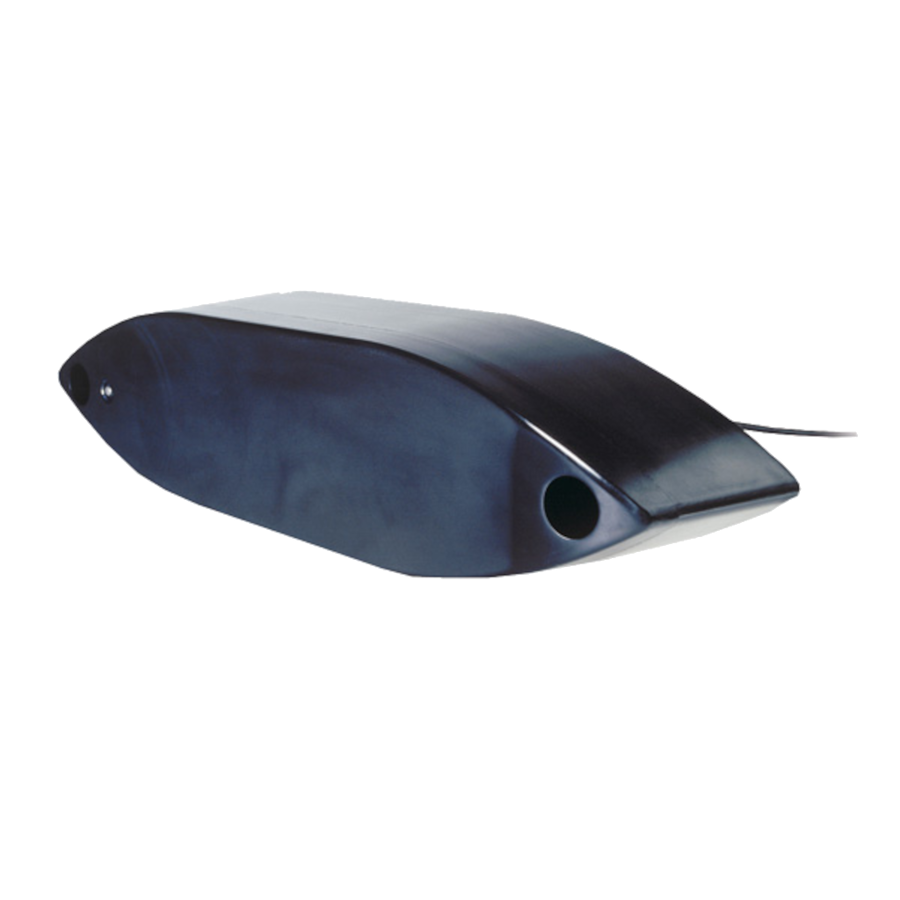

Airmar R109LM Low/Medium CHIRP 2kW Thru-Hull Transducer, No Connector

• Depth and fast-response water-temperature sensing
• 2 kW of power for outstanding deep-water performance
• Low frequency: 38 to 75 kHz, 19° to 10° port-starboard beamwidth, 10° to 5° fore-aft beamwidth, maximum depth of 1829 m (6000')
• Medium frequency: 80 to 130 kHz, 13° to 8° beamwidth, maximum depth of 914 m (3000')
• 87 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 38, 50, 88 and 107 kHz plus everything else in the bandwidth
• Urethane housing with fairing for optimal performance
• Also available as in-hull (R111LM) and pocket/keel/welded-tank (PM111LM) mounts
• Patented Xducer ID® technology

Having the right tool for the job makes the job easier and gives better results. The right tool for covering deep-water haunts of swordfish, tuna and other species is a 2 kW, low and medium-frequency transducer. The Chirp-ready R109LM delivers the deep-water performance of the low frequency down to 1829 m (6000') plus the detailed returns produced by the narrower beams of the medium band.

Chirp technology shows 5 to 10 times greater detail and resolution than conventional frequencies. The R109LM Chirps across the low-frequency bandwidth of 38 to 75 kHz and operates in the medium-frequency range of 80 to 130 kHz. This transducer delivers up to 87 kHz of total bandwidth in a single installation.

Brand: Airmar

Model Number: R109C-LM

Weight: 0
