Airmar B175H Bronze 12 Thru-Hull Transducer - 1kW, 8-Pin [B175C-12-H-8G]

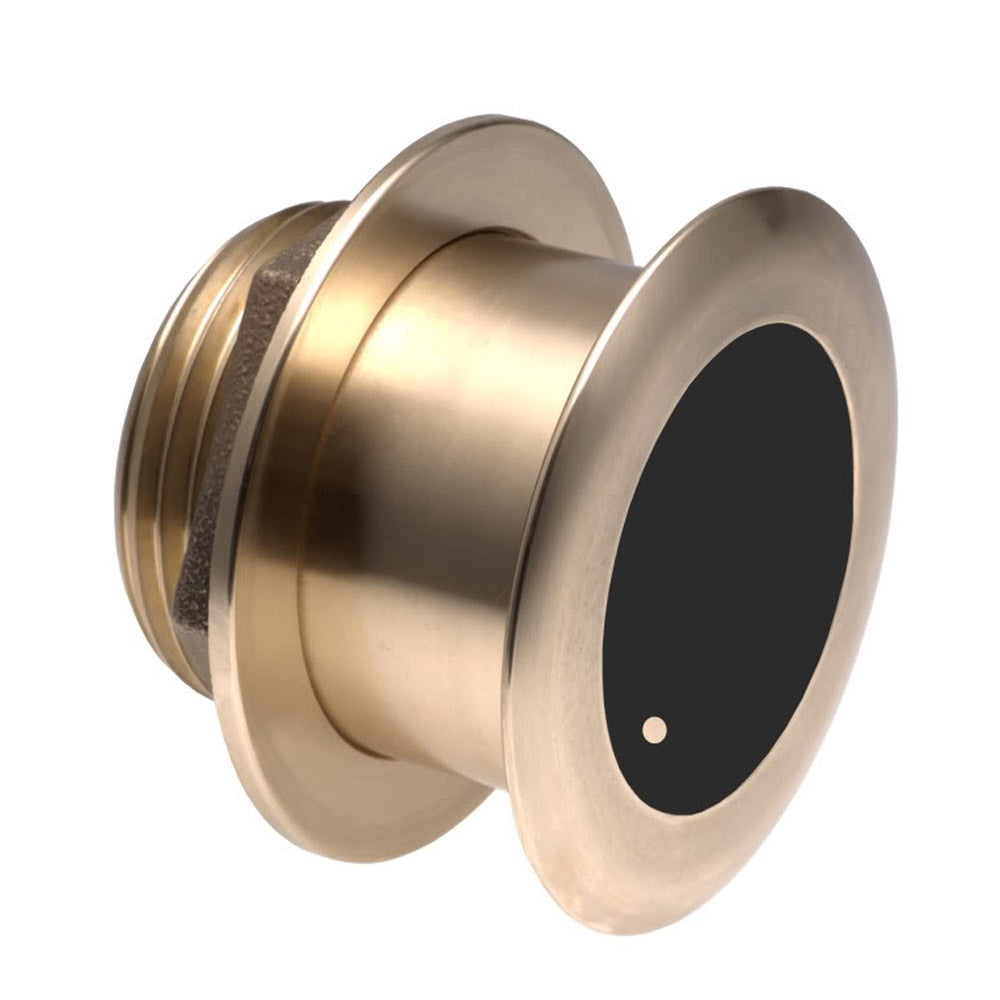

Airmar B175H  Bronze Thru Hull with 12° Tilt 8 Pin Connector

Airmar’s low-profile, Chirp-ready transducer models are the perfect addition to smaller boats such as center consoles. The high-frequency band delivers a narrow beamwidth, excellent for pinpointing fish holding tight to wrecks, reefs, and other structures. High frequency also shows amazing target separation on baitfish and schooling gamefish. Transmitting across 130 to 210 kHz, the B175H has up to 80 kHz of total bandwidth in just one installation for superior shallow-water performance and bottom detail.

Tilted Element™ transducers have the element fixed at a 20°, 12°, or 0° angle within the housing. Because the transducer is installed almost flush to the hull, the tilt corrects for the hull's deadrise. It orients the ceramic element horizontally to ensure maximum echo returns to the transducer.

Features

• Fixed 12° tilted version for 8 to 15° hull deadrise angles
• Depth and fast-response water-temperature sensing
• 1 kW of power with a maximum depth of 304 m (1000')
• High frequency: 130 to 210 kHz
• 10° to 6° beamwidth
• 80 kHz of total bandwidth from one transducer
• High frequency delivers superior shallow-water performance, bottom detail, and fish-target separation
• Low-profile, thru-hull housing yields good display resolution at speed when installed properly
• Recommended for stepped, planing, or displacement hull
• Bronze housing for use in a fiberglass or wood hull
• Patented Xducer ID® technology

Specifications

• Power Rating: 1 kW
• Max Deadrise Angle: 24°
• Housing: Bronze
• Functions: Depth, Temperature
• Hull Material: Fiberglass or wood
• Max Vessel LOA: Up to 11 m (36')
• Hole Size: Fiberglass or wood hull 95 mm (3-3/4"), Metal hull 105 mm (4-1/8")
• Usable Shaft Length: 71 mm (2.80")
• Mounting Style: Tilted Element Thru-Hull
• Acoustic Window: Urethane
• Common Use: Leisure/Yachting, Fishing
• High Frequency: 130-210 kHz
• High Frequency Beamwidth: 15°-9°
• Max Deadrise: Up to 24°
• Max Depth: 304 m (1000')
• Retractable housing: No
• Single or Dual Frequency: CHIRP-Ready Single-Band
• Tilted Element: Yes
• Weight: 2.7 kg (6 lbs.)

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Cable Length (Feet): 39'
• Chirp: High
• Imaging: Standard
• Mounting Style: Thru-Hull
• Pins: 8
• Speed Included: No
• Temperature: Yes
• Box Dimensions: 1"H x 6"W x 6"L WT: 11 lbs
