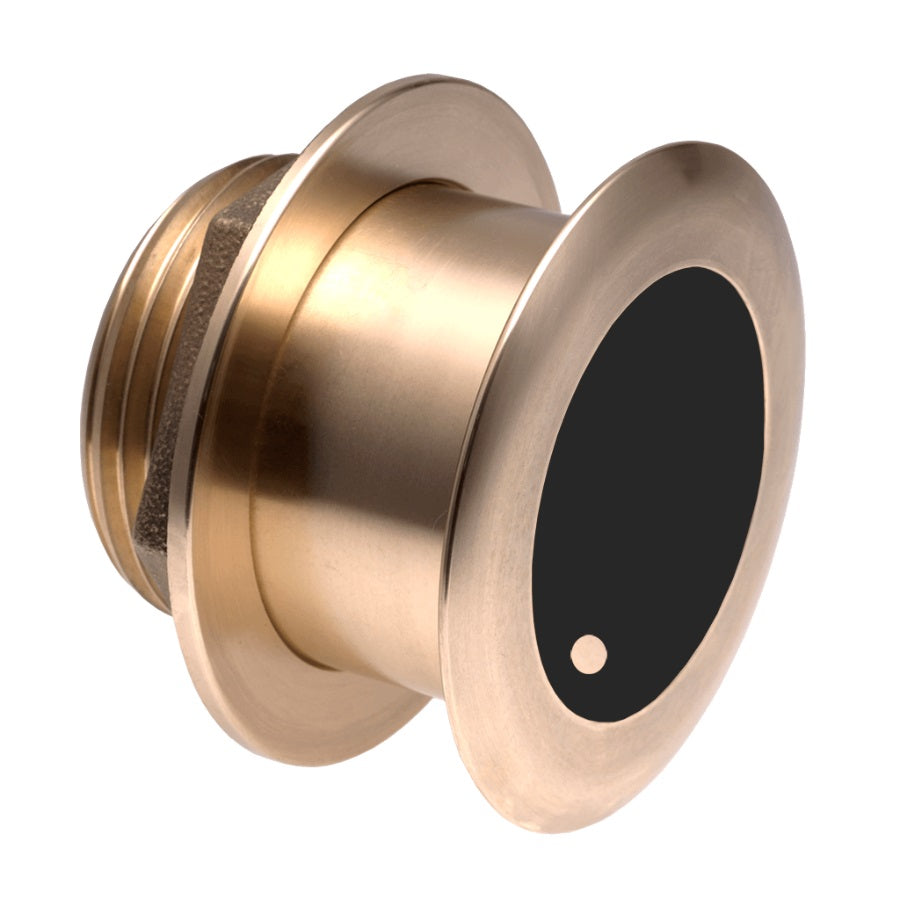

Raymarine B175MW 1Kw 20Deg Tilt Wide Beam CHIRP Thru Hull

Model: A80801
  • Depth and fast-response water-temperature sensor
  • 1 kW with depth tracking down to 400 m (1,300')
  • Medium frequency: 60-100 kHz - 57° to 73° beamwidth (port/starboard) - 16° average fore/aft
  • 40 kHz of total bandwidth from one transducer
  • Medium frequency for superior mid-depth performance and excellent fish-target separation
  • Bronze housing for use on stepped, planing or displacement hull
  • Low-profile, thru-hull housing yields good resolution at speed when installed properly
  • Exclusive Xducer ID® technology

AIRMAR’s innovative transducer designs have revolutionized the fishing world, and they continue to do so with the NEW Chirp-ready B175 Medium Ultra-Wide (MW) Tilted Element™ Thru-hull transducer. The B175MW takes transducer design and performance to a whole new level by using medium frequency (60-100 kHz) with an incredible ultra-wide beamwidth ranging from 57-73° port-starboard to 16° average fore-aft. Maximum coverage under the boat is achieved with this medium-frequency transducer, serving anglers who target pelagic species in the upper water column.

Airmar’s new Medium Ultra-Wide models are perfect for seeking deeper species with a frequency band from 60-100 kHz. When paired with our other popular models such as the B275LHW, provides the angler with a broad set of frequencies (Low, Medium-Wide, High-Wide) to interrogate targets from deep to shallow.

The B175MW Tilted Element Thru-hull is a 1 kW transducer housed in one of AIRMAR’s most popular Tilted Element housings which includes a ceramic element fixed at a 20°, 12° or 0° angle. Because the transducer is installed almost flush to the hull, the tilted element corrects for the hull deadrise and orients the ceramic element vertically to ensure maximum echo returns to the transducer.

Specifications
Power Rating 1 kW
Max Deadrise Angle 24°
Housing Bronze
Functions Depth, Temperature
Hull Material Fiberglass or wood
Max Vessel LOA Up to 11 m (36')
Hole Size 95 mm (3-3/4")
Mounting Style Tilted Element Thru-Hull
Acoustic Window Urethane
Cable-Length 9 m (30')
Common Use Fishing
Max Depth 400 m (1300')
Medium Frequency 60-100 kHz
Medium Frequency Beamwidth 57° to 73° (Port/Starboard) X 16° average (Fore/Aft)
Medium-Wide Beamwidth 57° to 73° beam p/s 16° average f/a
Power Rating 1 kW
Single or Dual Frequency CHIRP-Ready Single-Band
Tilted Element Yes
Water Temperature -10° to 40°C (14° to 104°F)
Weight 2.7 kg (6 lb.)
