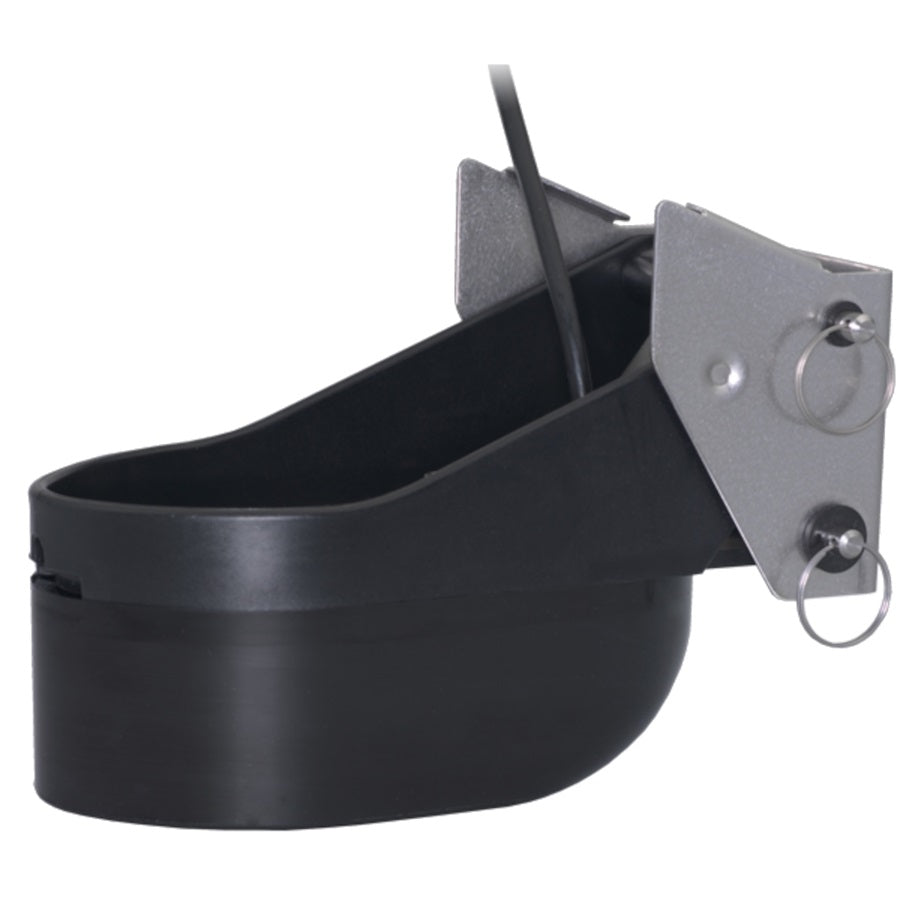

Raymarine TM185HW 1Kw Depth and Temperature CHIRP Transom Mount

Model: A80804
  • Depth and fast-response water-temperature sensing
  • 1 kW of power
  • High frequency: 150 to 250 kHz - Constant 25° beamwidth - Maximum depth of 152 m (500')
  • 100 kHz of total bandwidth from one transducer
  • Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth
  • Stainless steel bracket for installation on outboard or inboard/outboard powered boats
  • Recommended for use on planing and displacement hulls
  • SEALCAST™, seamless, urethane housing for long life in the water
  • Also available as thru-hull Tilted™ Element (B175HW)(SS175HW), thru-hull with fairing (B285HW), and in-hull (M285HW) mounts
  • Patented Xducer ID® technology

Get more coverage under your boat with Airmar’s unique, wide-beam, high-frequency, Chirp-ready TM185HW. The high-frequency band operates across a range of 150 to 250 kHz and has a fixed 25° beam. The high-frequency band yields superior shallow-water performance, bottom detail, and fish-target separation. The constantly wide beam provides twice the coverage for detecting fish in the upper-water column and clear fish arches on the display compared to most high-frequency, narrow-beam transducers. The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage are essential down to 152 m (500').

Specifications
Power Rating 1 kW
Transom Angle 3° to 21°
Functions Depth, Temperature
Max Vessel LOA Up to 10 m (33')
Acoustic Window Urethane
Common Use Leisure/Yachting, Fishing
Freq Hi Wide 150-250 kHz
High-Wide Beamwidth 25°
Housing Urethane/Stainless Bracket
Hull Material Compatible w/ all hull materials
Max Depth 150 m (500')
Mounting Style Transom
Retractable housing No
Single or Dual Frequency CHIRP-Ready Single-Band
Tilted Element No
Weight: 4.2 kg (9.2 lb.)


WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Brand: Raymarine

UPC: 723193862544

Model Number: A80804
