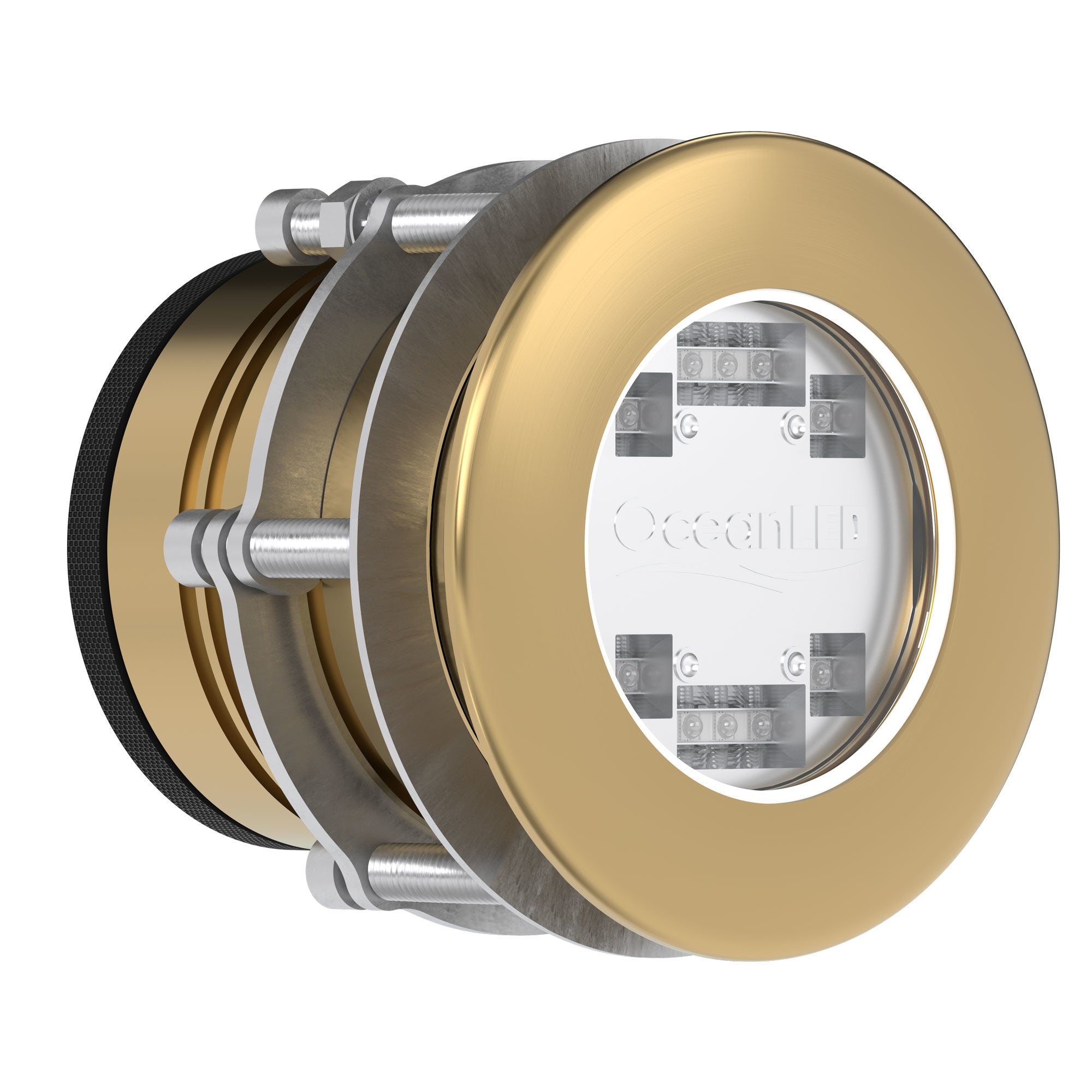

OceanLED Explore E3 XFM
Model: E3009CSThe Explore E3 has the most advanced optics available on the market.
The mix of optic / electronics / form factor / built in driver / plug and play work together to make the most advanced underwater light series available in the market.
All aspects of the design including the clamping kit make installation quicker and simpler.
The compact size and built in driver mean less space is required inside the vessel, allowing installation in tight areas.
Specifications| Lumens (Colour Scroll) | 8,500 8,500 19,000 |
| Fixture Lumens (Colour Scroll) | 3,000* |
| Min-Max Operating voltage DC | 9-32V DC |
| Current / Amp draw Colour Scroll (12V DC / 24V DC) | 5.5A / 2.4A |
| Min-Max Operating voltage AC (Optional) | 100V - 240V AC |
| Current / Amp draw Colour Scroll (110V AC / 230V AC) | 620mA / 290mA |
| Driver type | Internal |
| Boat size | 0-10m |
| Transom / Hull spacing | 0.5-1.2m (2-4’) |
| Installation depth below waterline | 25-30cm (10-12") |
| Total weight | 1.2kg (2.65lbs) |
| Total Diameter (Including Flange) | 105mm (4.13") |
| Diameter Of Body | 80mm (3.15") |
| Profile Of Fixture | 4mm (0.16") |
| Length | 97mm (3..8") |
| Minimum Space Required Inside The Hull | 170mm (6.55") |
| Hole Cut-Out | 83mm (3.25") |
| Material (Mounting Tube) | AB2 Aluminium Bronze |
| Material (Light Body) | Aluminium |
Brand: Ocean LED
UPC: 5051803007654
Model Number: E3009CS
