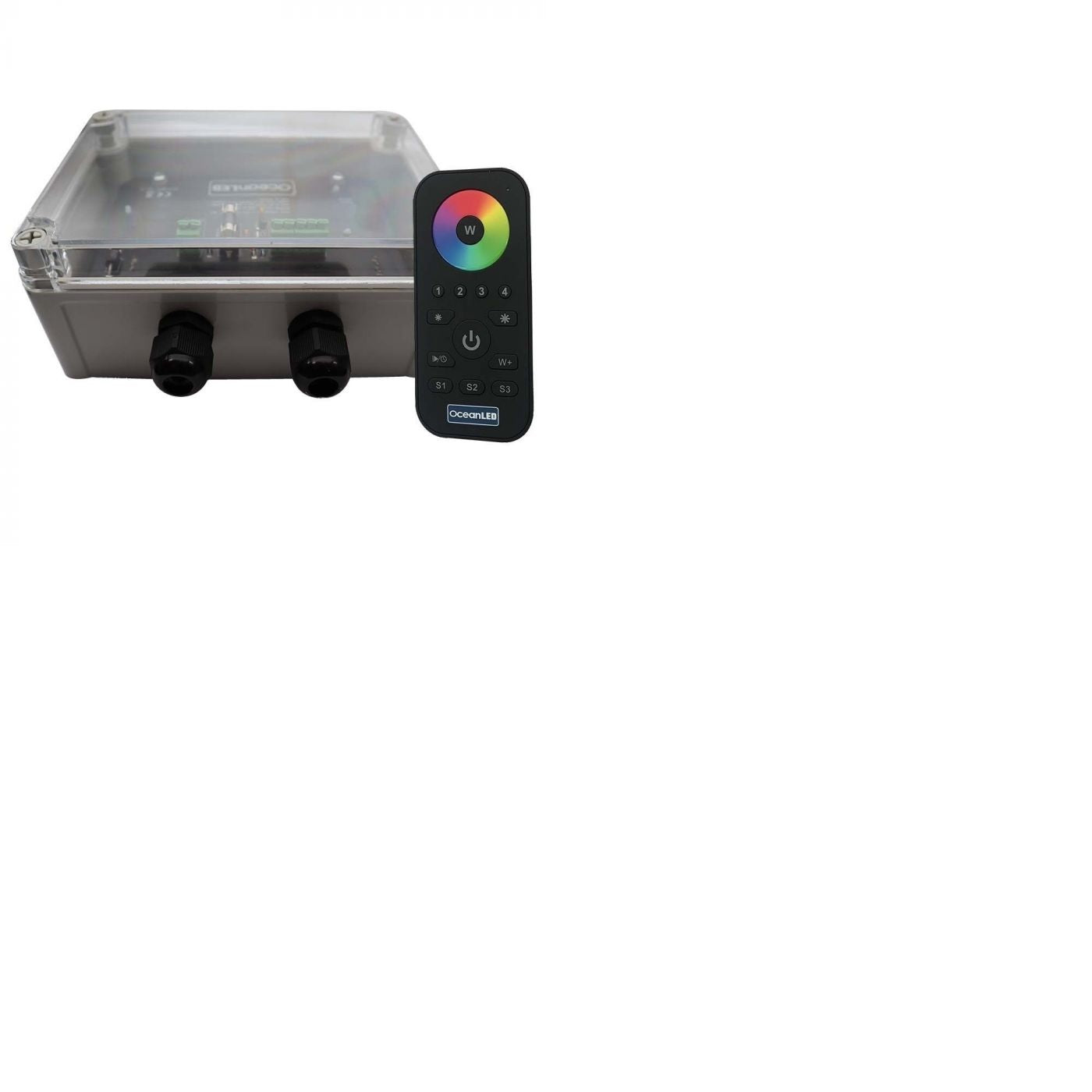

OceanLED OceanDMX RC Explore XFM Colours 915
Model: 013016The OceanDMX RC allows you to remotely control the RGBW colour lighting system installed on your boat via the DMX protocol (the lighting system must be DMX compatible).
The OceanDMX RC has 3 programmable scenes with up to 10 pre-set modes.
The OceanDMX RC has the ability to connect to 4 zones independently (excluding X-Series), therefore you can control your transom lights independently from your port/starboard lights.
The OceanDMX RC Receiver connects to the remote via radio frequency (RC). The receiver is waterproof to IP68 certification, and has a range of up to 20m, depending on mounting location.
Use up to 8 different remotes to control your lights with just 1 receiver.
Specifications| REMOTE TECHNICAL | |
| Operation Voltage | 4.5v DC 3x AAA batteries (Not included) |
| Operation Frequency | 916.5MHz |
| Remarks | RF Signal |
| Operating Temp | -20 to +40°C |
| Waterproof grade | IP20 Non-Waterproof |
| Waterproof grade (With pouch) | IP66 Waterproof |
| DMX WiFi RECEIVER TECHNICAL | |
| Supply Voltage | 12/24v DC (9-32v DC) |
| Nominal Current | 200mA (Max) |
| Connections | Power In, DMX Out |
| Input / Output cable glands | IP68 (2x M16) |
| Operating Temp | -20°C to +50°C |
| Operation Frequency 915 | 916.5MHz |
| Wireless Range | Up to 20 meters* |
| REMOTE PHYSICAL | |
| Dimensions | 55mm x 120mm x 17mm |
| Weight | 50g (without batteries) |
| DMX WiFi RECEIVER PHYSICAL | |
| Total weight | 0.48kg (1.06 lbs) |
| Extension cable length (standard) | 9.84’ (3m) |
| Material | Robust polycarbonate with semi transparent lid |
Brand: Ocean LED
Model Number: 013016
Weight: 1.000000
