Newmar BB2 Bus Bar

Newmar BB2 Bus Bar

Ideal as a DC ground tie point or positive bus, these heavy duty, 500 amp rated bus...
Vendor: Newmar
SKU: wt-NEWBB2
Availability: In stock
$95.59
$110.62
$95.59
Subtotal: $95.59
Description
Description
x
  • Ideal as a DC ground tie point or positive bus, these heavy duty, 500 amp rated bus bar assemblies feature 5/16" studs on 1" centers in 1/4" thick copper bar for common connection/distribution of large wire gauges and accommodate 5/16" ring terminals.
  • One combination model features two 5/16" studs and eight #8 screws, accommodating multiple size wire terminals.
  • All bus material is nickel-plated copper.
  • A clear insulating protective cover is provided to prevent short circuits and provide visibility of lugs.
  • The mounting bases are keyed for interlocking and may be mated with the terminal strips (described above). Conductive parts are captured and recessed away from the mounting surface. Use #8 or #10 screws for mounting.

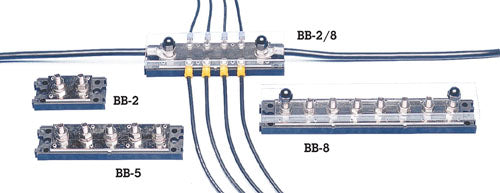

Model Qty. of 5/16" Studs Base Size
BB-2 2 3 1/16" x 1 1/2"
BB-2/8 2 plus 8 - #8 screws 6 1/16" x 1 1/2"
BB-5 5 6 1/16" x 1 1/2"
BB-8 8 9 1/16" x 1 1/2"


WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Brand: Newmar

UPC: 014444902516

Model Number: BB-2

Weight: 1.000000
