Newmar ACCY-IBX Blank Panel

Accessory Panels

These versatile panels are ideal for smaller vessels with only a limited number of electrical circuits, or for larger systems where their modular design makes for an easy and attractive expansion of existing system capacity.

Stock panels with breakers installed come standard with DC indicator lights, but may be factory modified with AC indicator lights instead. Blank versions of the panels come with all necessary hardware to install lights and breakers. All panels are provided with a circuit identification label set of 22 common on-board electrical functions (see below).

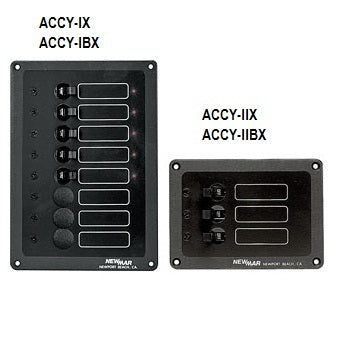

ACCY-IX:

8 breaker capacity, 5 installed standard; 2-5A, 1-10A, 1-15A, 1-20A or specify. 8 DC circuit "ON" indicator lights installed standard, AC lights optional. Size: 7 1/2" x 5 1/4", Weight: 2 lbs.

ACCY-IBX: Blank version of ACCY-IX above. No breakers provided. Label set, light and breaker mounting hardware provided. Weight: 1 lb.



Half-height version of ACCY-IX at left. 3 breaker capacity, 3 installed standard; 3 DC ?ON? indicator lights installed standard - AC optional. 1-5A, 1-10A 1-15A or specify. Size: 3 3/4" x 5 1/4", Weight: 1 lb.

ACCY-IIBX:

Installation Cut-Out Dimensions*

Brand: Newmar

UPC: 651650022562

Model Number: ACCY-IBX

Weight: 1.000000
