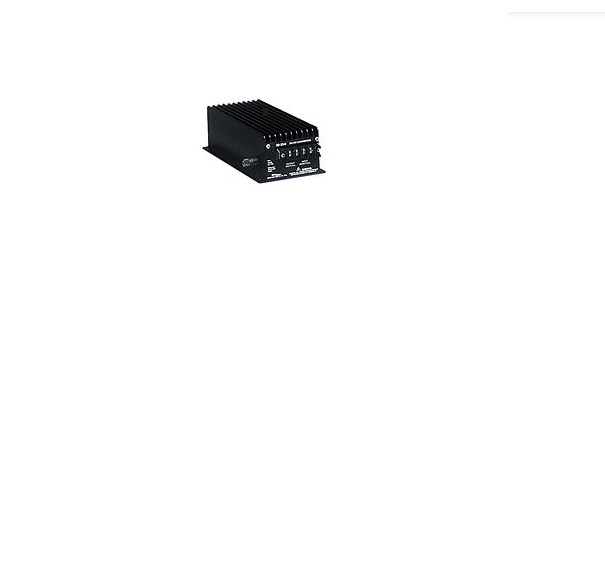

Newmar 32-12-15 DC-DC Converter 20-50VDC To 13.6 Vdc @ 15A

Newmar 32-12-15 15 Amp DC-DC Converter

• Excellent Regulation: Output voltage maintained within 1% under all line and load conditions within rating.
• Heat generated by semi-conductors is extracted and dissipated by large heat sink fins that maximize air contact for cool operation and long life of components.
• Polyurethane conformal coating on PC boards and corrosion-resistant anodized aluminum case with heavy duty shock mounts assure survival in hostile environments.
• Numerous converter and load protection circuits:
• Current limiting
• Automatic thermal shutdown
• Short circuit proof
• Reverse polarity
• Overvoltage protection
• Carries CE mark

Convert 20-50 VDC input to 12 negative ground output for powering communication/navigation equipment, on negative ground systems. (See Isolated Series, for positive ground applications.) Ideal for powering voice, data and navigation electronics in marine applications.

Brand: Newmar

UPC: 012302330075

Model Number: 420-3535-0

Weight: 8.000000
