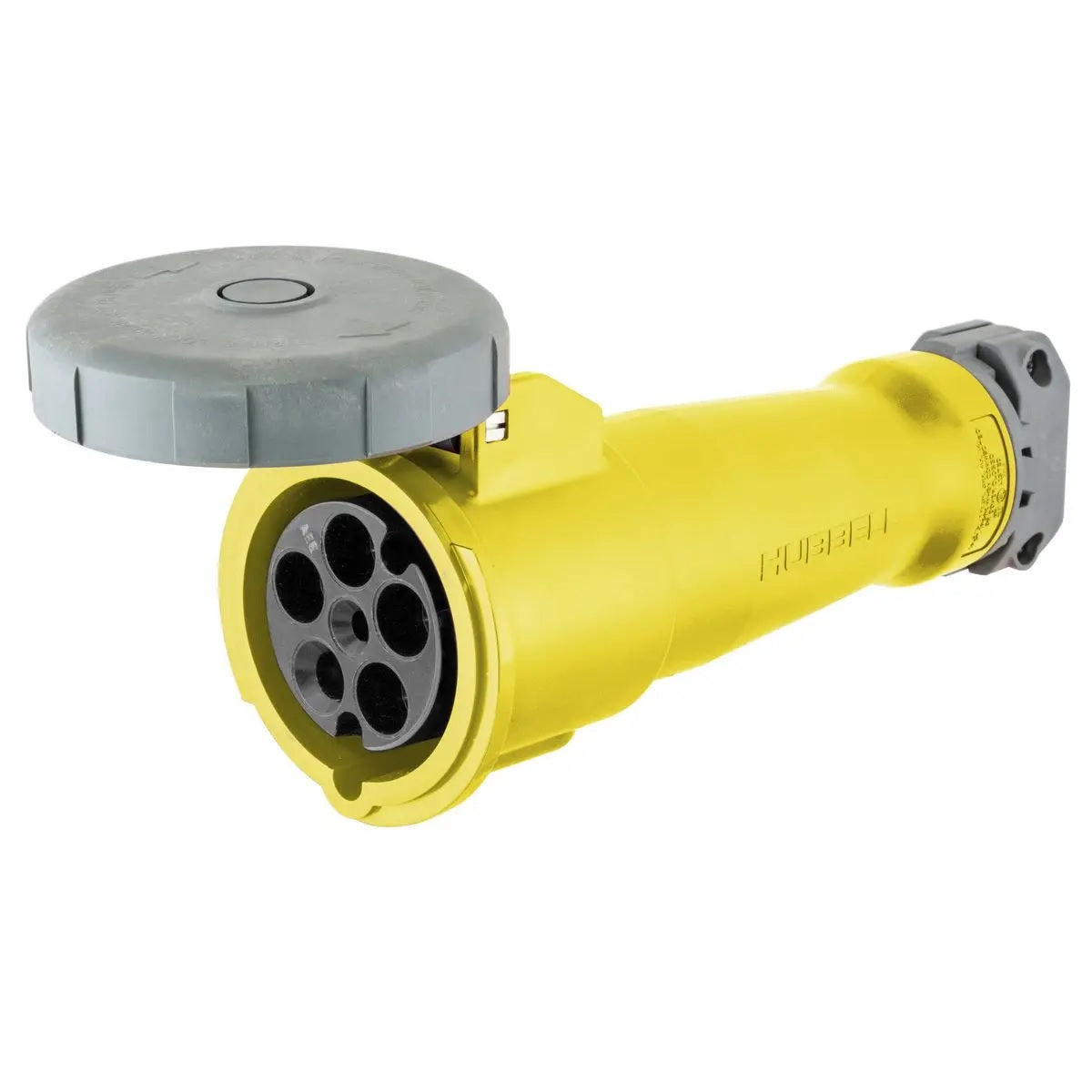

Hubbell M5100C7 100A 480V Female Connector Body

Hubbell M5100C7 100A 480V Female Connector Body

Hubbell M5100C 5-Wire 100 Amp 480 Volt Female Connector BodyModel: M5100C7 Insulated non-metallic housing Self-closing gasketed cover...
Vendor: Hubbell Wiring
SKU: wt-HUBM5100C7
Availability: In stock
$1,223.14
$2,790.98
$1,223.14
Subtotal: $1,223.14
Description
Description
x

Hubbell M5100C 5-Wire 100 Amp 480 Volt Female Connector Body

Model: M5100C7
  • Insulated non-metallic housing
  • Self-closing gasketed cover
  • Color coded housings for easy identification

Heavy Duty Products, IEC Pin and Sleeve Devices, Marine Grade, Female, Connector Body, 100A 3-Phase Wye 277/480V AC, 4-Pole 5-Wire Grounding, Terminal Screws, Yellow

Specifications
Number Of Poles 4
Temperature Rating Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Amperage Rating 100
Current Rating 100
Voltage Rating Three Phase Y 277 VAC
Three Phase Y 480 VAC
ConductorRange #4AWG to #2AWG
Number Of Wires 5
NumberOfConductors 5-Wire Grounding
Mates with M5100P7


Exempt

Brand: Hubbell Wiring

UPC: 783585510095

Model Number: M5100C7

Weight: 4.000000
