Hubbell HBL50AITSSB 15kVA 60Hz Isolation Transformer W/Boost

Hubbell HBL50AITSSB 15kVA 60Hz Isolation Transformer W/Boost

Vendor: Hubbell Wiring
SKU: wt-HUBHBL50AITSSB
Availability: Out Of Stock
Product type: Isolation Transformers
$13,182.56
$25,891.05
$13,182.56
Subtotal: $13,182.56
Description
Description
x

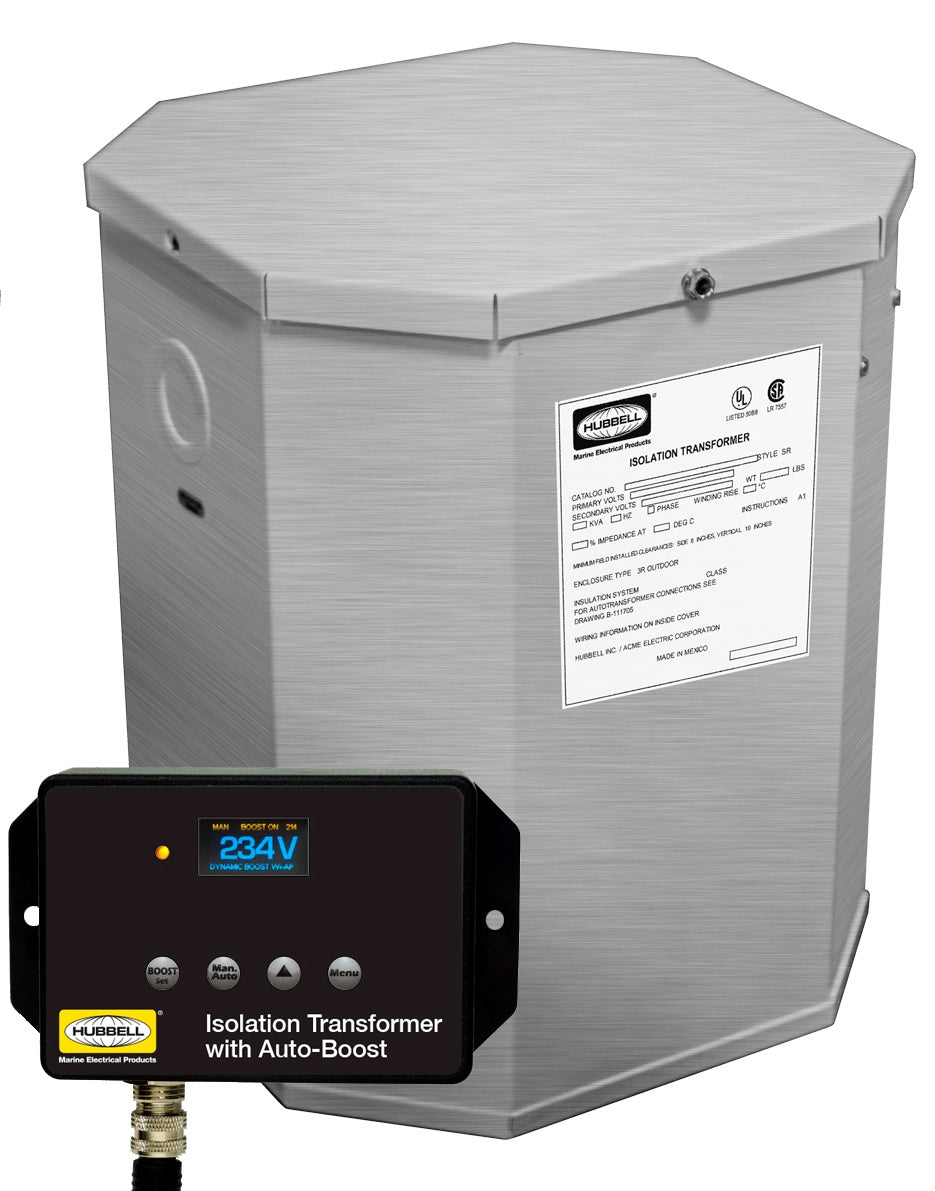

Hubbell 15kVA 60 Hz Isolation Transformer, With ISO-Boost

Model: HBL50AITSSB
  • UL listed, CSA certified and UL-3R enclosures meets or exceeds all listing criteria including NEMA, ANSI and OSHA standards
  • Shielded for cleaner power
  • Encapsulated and completely enclosed design electrical grade silica and resin compounds completely enclose the core and coil to seal out all moisture and air. UL Type 3R enclosure for indoor or outdoor service. Encapsulation eliminates corrosion and insulation deterioration
  • Quiet operation with sound levels well below NEMA standards
  • Long life UL class 155°C insulation system. 115°C rise thru .750 kVA; 180°C insulation system, 115°C rise, 1 kVA and above
  • Exceeds ABYC’s 4000 Volt HIPOT test requirement
  • Made for the Marine Industry by The Shore Power Experts
  • 12.5% Taps
  • Two Full Current-Carrying Shields
  • Vibration-Resistant
Dimensions 16.94" H x 14.12" W x 11.69" D

Exempt

Brand: Hubbell Wiring

UPC: 783585567228

Model Number: HBL50AITSSB

Weight: 170.000000
