Garmin Class B Compact v2 Drive Unirt

Garmin Class B Compact v2 Drive Unirt

Garmin Class B Compact v2 Drive UnitModel: 010-12029-01The Class B Drive Unit works with the Reactor 40...
Vendor: Garmin
SKU: wt-GAR0101202901
Availability: In stock
$3,367.14
$3,989.71
$3,367.14
Subtotal: $3,367.14
Description
Description
x

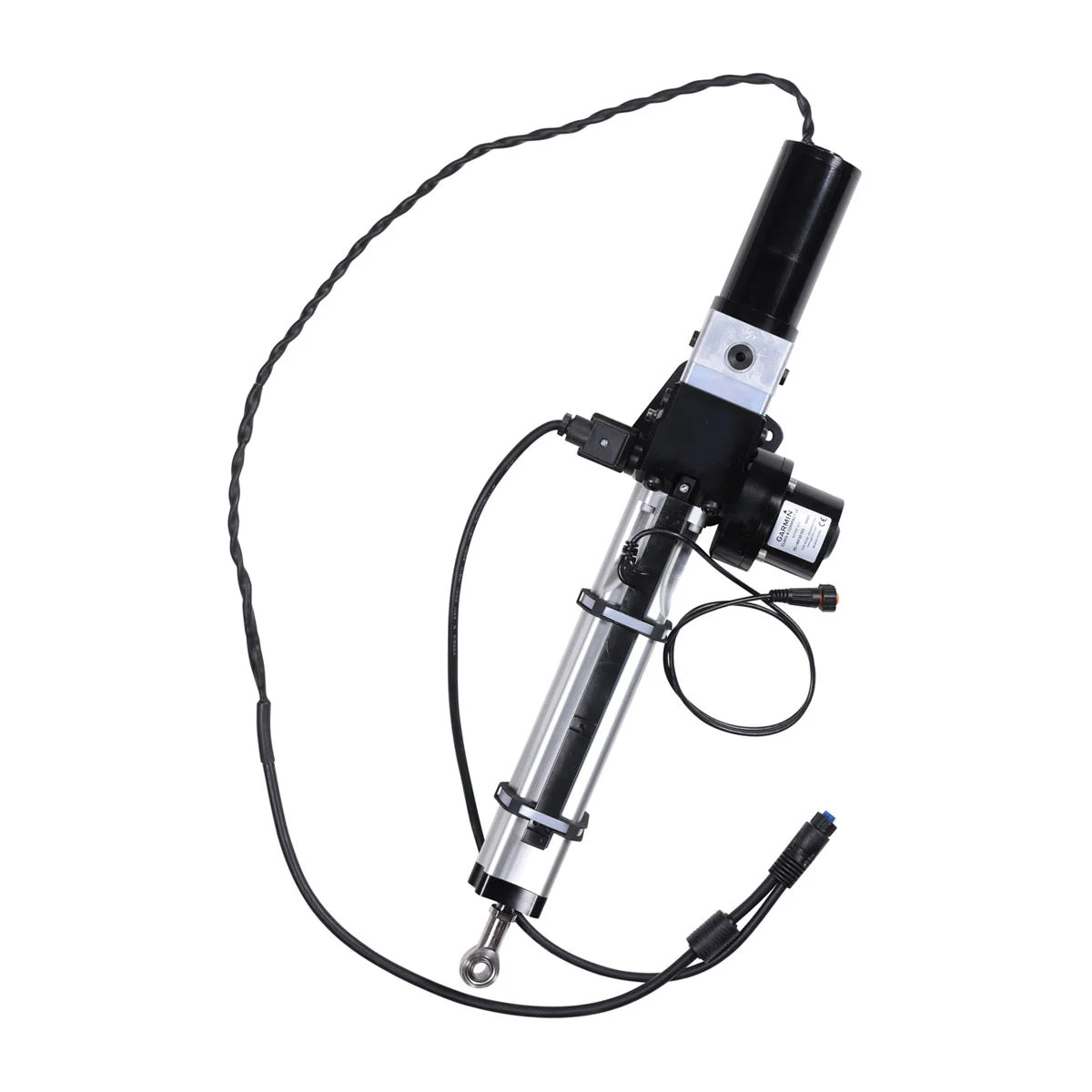

Garmin Class B Compact v2 Drive Unit

Model: 010-12029-01

The Class B Drive Unit works with the Reactor 40 Mechanical/Retrofit/Solenoid Corepack to control your sailboat’s steering system. This device is designed for use with sailboats with up to 48,400 lbs of displacement.

Specifications
Dimensions (WxHxD, centered) 31.9 x 4.6" x 8.9" (810 x 120 x 225 mm)
Drive unit type integrated hydraulic linear
Stroke length 10" (254 mm)
Maximum thrust 1,610 lbs (730 kg)
Supply voltage 10V to 30 V (regulated to 12V by the ECU)
Average clutch current at 12V 1 Amp
Average motor current at 12V 2-4 Amps
Operating temperature -15° C to 50° C


WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Brand: Garmin

UPC: 753759335816

Model Number: 010-12029-01

Weight: 24.000000
