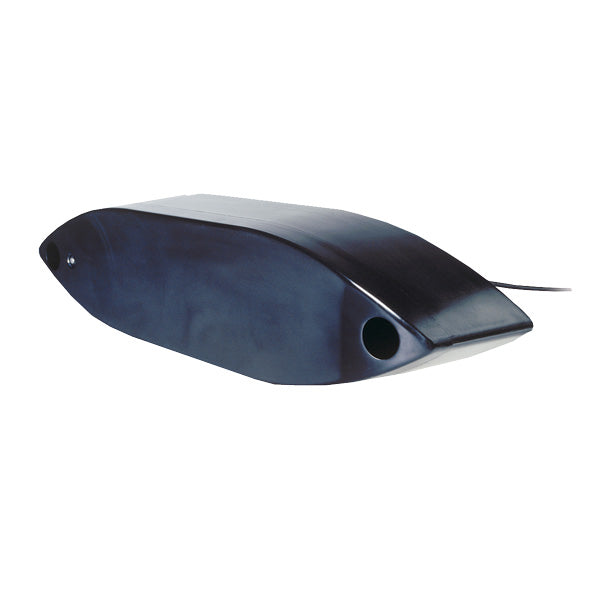

Furuno R109LH Transducer

Furuno R109LH Chirp-ready External Mount

• Depth and fast-response water-temperature sensor
• 2 kW
• Low frequency: 38 to 75 kHz
• High frequency: 130 to 210 kHz
• 117 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 50, 60, and 200 kHz plus everything else in the bandwidth
• Urethane housing with fairing for optimal performance

The R109LH is an externally mounted, 2 kW transducer which delivers excellent target resolution, bottom discrimination, and bait and game-fish separation. The R109LH is packed with a fifteen-element, low-frequency array that operates at anywhere between 38 and 75 kHz, delivering great depth capability down to 1,829 m (6,000').

The single, high-frequency ceramic operates at any frequency between 130 and 210 kHz and has a narrow (8° to 4°) beam that provide tremendous bottom detail and fish-target discrimination at depths to 457 m (1,500').

• R109LH Transducer
• fairing
• Mounting hardware


WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Brand: Airmar

UPC: 611679369598

Model Number: R109LH

Weight: 37.000000
