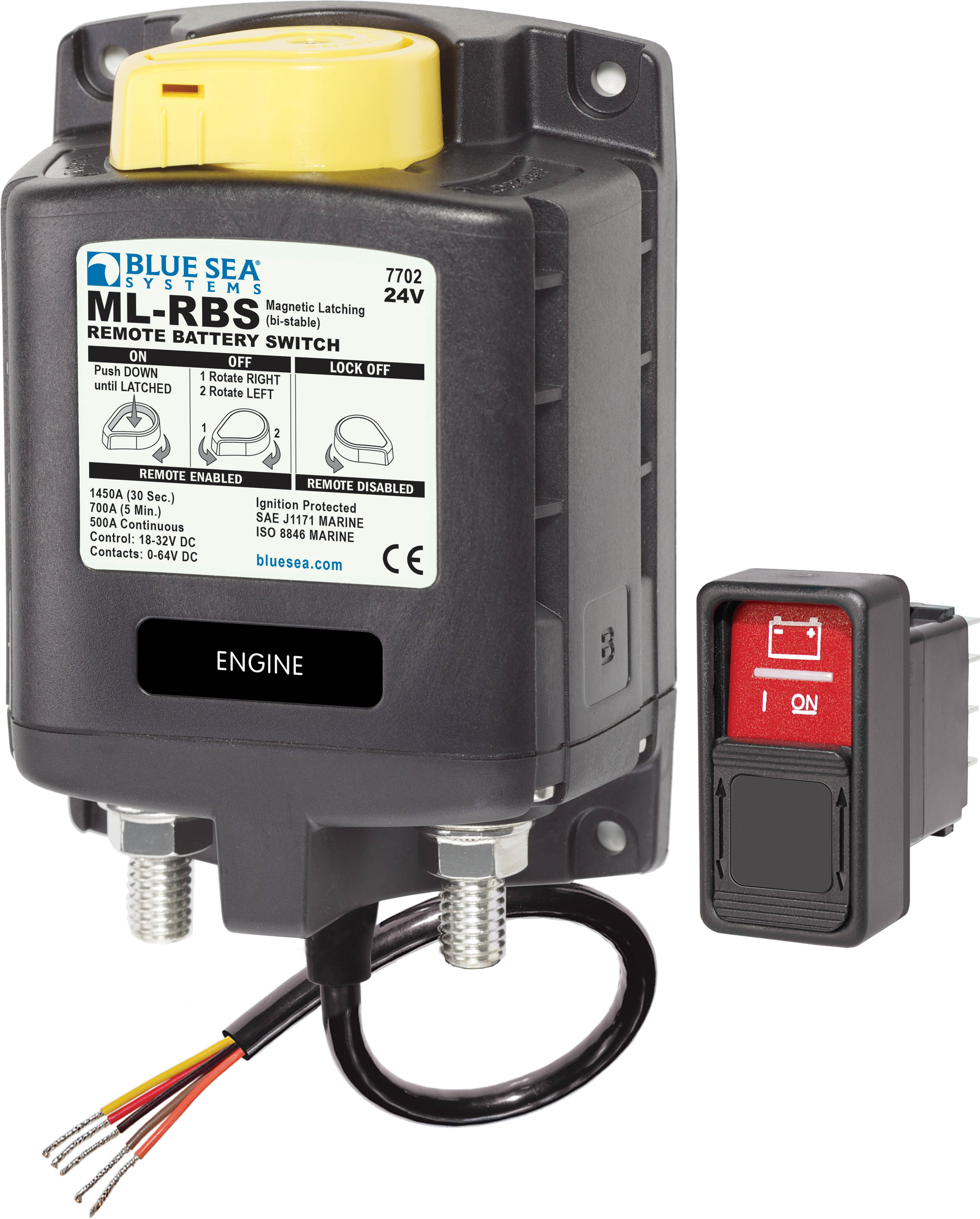

Blue Sea ML-RBS Remote Battery Switch with Manual Control - 24V DC 500A

Model: 7702-BSS
  • Manual override knob provides an added level of safety allowing control with or without power and offering LOCKED OFF capability for servicing
  • LED output to remotely indicate switch state - requires optional LED
  • 3? 8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance
  • 7? 8" (22 mm) stud length accepts multiple cable terminals
  • Label recesses for circuit identification
  • Silver alloy contacts provide high reliability for switching live loads

500 Amp magnetic latching switch provides high amperage switching under load, manually or from remote locations

Specifications
Control Circuit Voltage 18-32V DC
Control Circuit Connection Tinned Wire
Nominal Voltage 24V DC
Manual Control Yes
Coil Function Bi-Stable
Amperage Operating Current 0mA
Amperage Operating Current when changing state <4A (40 ms)
Continuous Rating 500A
Intermittent Rating 700A - 5 minutes
Cranking Rating 30 sec 1450A DC
Minimum Operating Temperature -10° C
Maximum Operating Temperature 60° C
Cable Size to Meet Ratings 2x (4/0)
Live Current Switching 300A @ 12V DC, 150A @ 24V DC
Master Control Switch Capability No
Mechanical Endurance 100,000 Cycles
Terminal Ring Diameter Clearance 1.18in (29.97 mm)
Terminal Stud Length 0.875in (22.23 mm)
Terminal Stud Size 3/8" - 16 (M10)
Weight 2.05lb (0.93 kg)


WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Brand: Blue Sea Systems

UPC: 632085077020

Model Number: 7702-BSS

Weight: 2.050000
