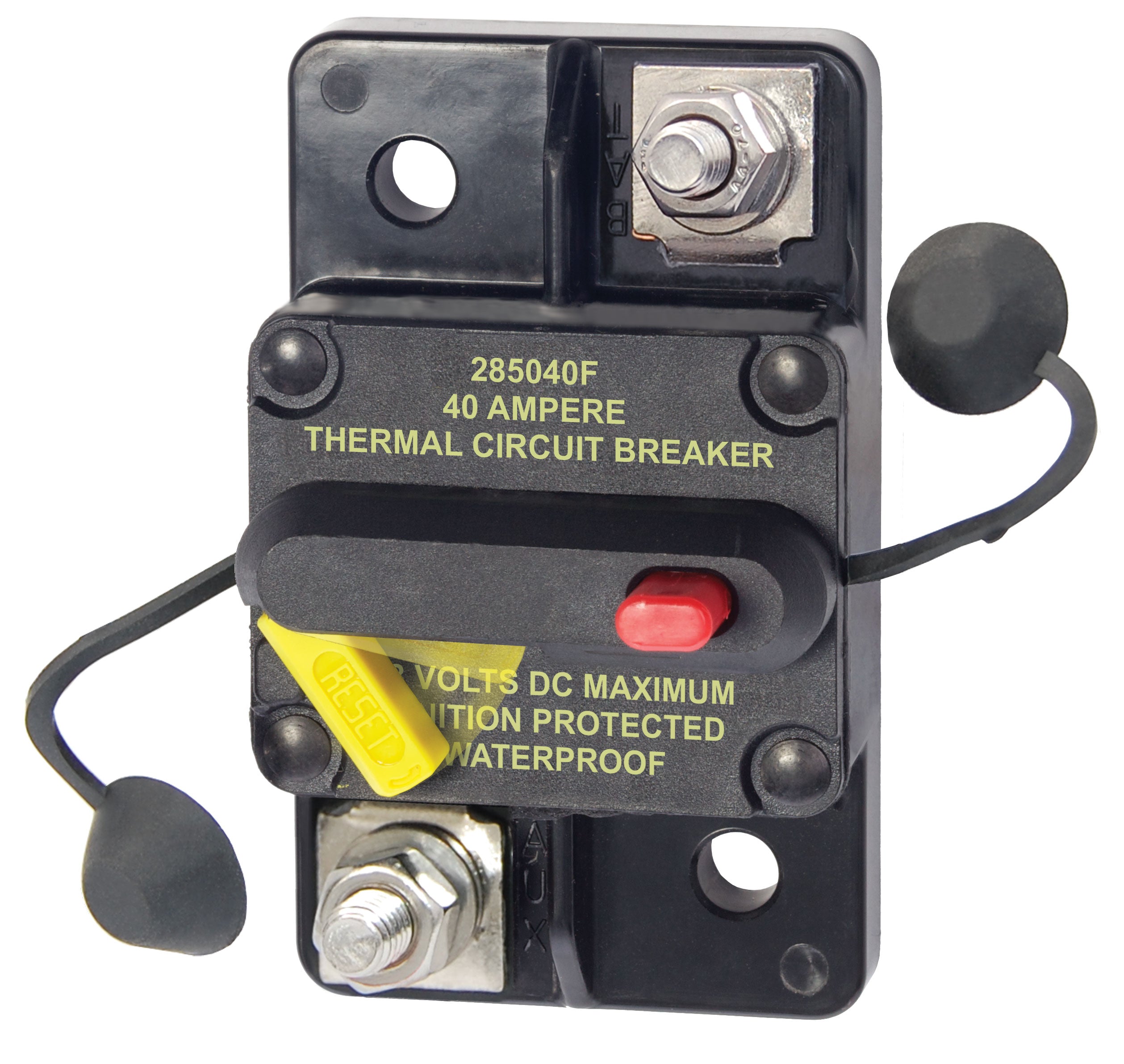

Blue Sea 285-Series 40 Amp Circuit Breaker Surface Mount

Blue Sea 285-Series 40 Amp Circuit Breaker Surface Mount

Ble Sea Systems 285-Series Circuit Breaker - Surface Mount 40AModel: 7182-BSS Drop in replacement for 185-Series Circuit...
Vendor: Blue Sea Systems
SKU: wt-BSS7182
Availability: In stock
$76.48
$118.20
$76.48
Subtotal: $76.48
Description
Description
x

Ble Sea Systems 285-Series Circuit Breaker - Surface Mount 40A

Model: 7182-BSS
  • Drop in replacement for 185-Series Circuit Breakers
  • Visible reset lever shows open condition
  • Ignition protected - Safe for installation aboard gasoline powered boats
  • Meets SAE J1171 external ignition protection requirements
  • Weather Resistant
  • Combines switching and circuit breaker function into one unit*
  • "Trip Free" - cannot be held closed after trip

* Do not use as a switch where high inrush currents are expected

Specifications
Amperage 40A
Maximum Voltage 48V DC
Mounting Surface Mount
Circuit Breaker Type Thermally responsive Bi-metal blade
Terminal Stud Torque 50 in-lb (5.65 Nm)
Interrupt Capacity 3000A @ 48V
Minimum Operating Temperature -40° C
Maximum Operating Temperature 85° C
Circuit Breaker Class Type III - switchable/manual reset - trip free
Terminal Stud M6 (accepts 1/4" Ring Terminal)

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Brand: Blue Sea Systems

UPC: 632085071820

Model Number: 7182-BSS

Weight: 0.500000
