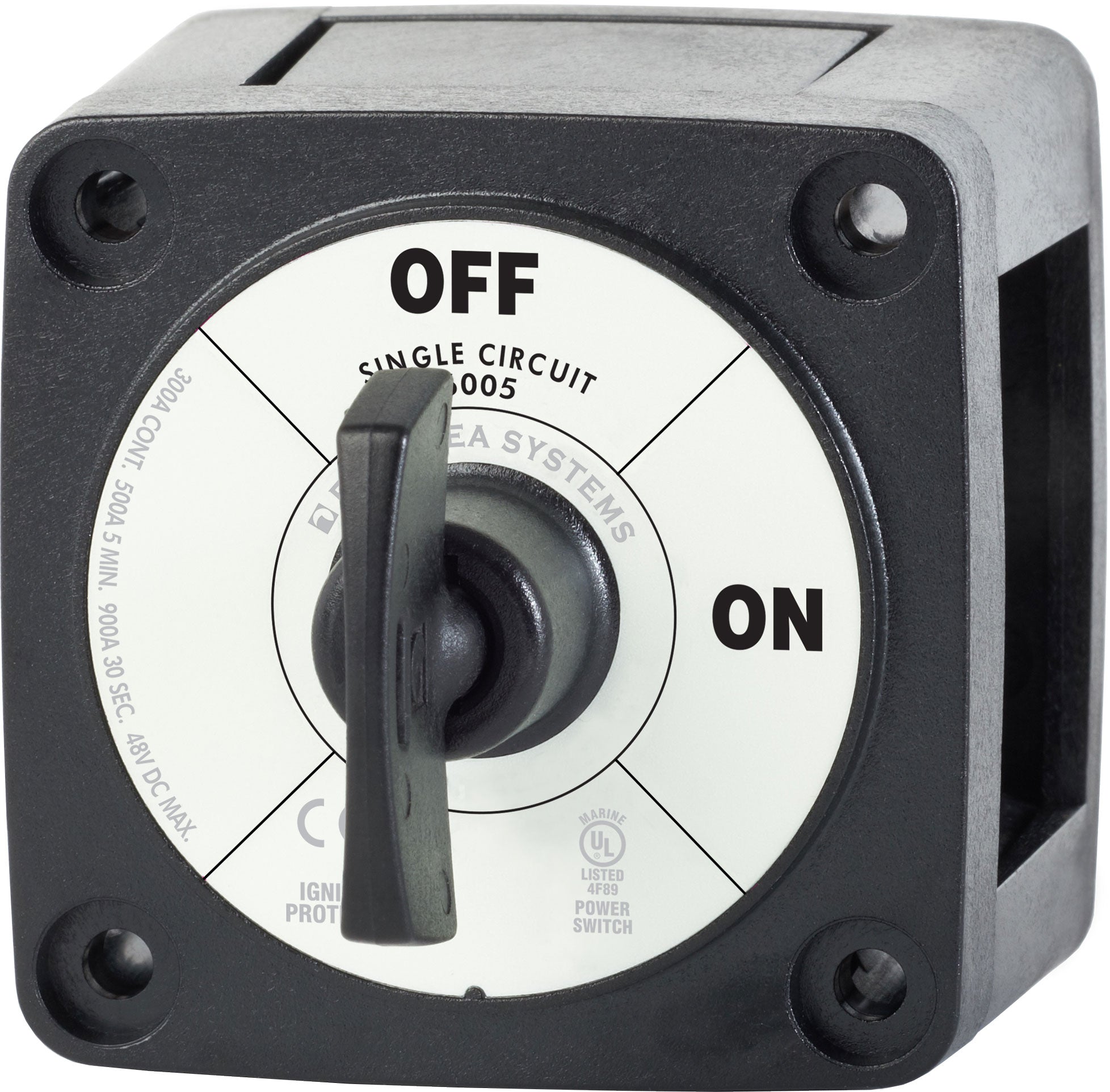

Blue Sea Systems m-Series Mini On-Off Battery Switch with Key - Black
Model: 6005200-BSSSwitches a single battery to a single load group
Specifications| Switch Type | Single Circuit ON-OFF |
| Color | Black |
| Switch Positions | 2 |
| Battery Combine | No |
| Alternator Field Disconnect | No |
| Maximum Voltage | 48vDC |
| Stud Size | 3/8" |
| Terminal Stud Torque | 120 in-lb (13.56 Nm) |
| Continuous Rating | 300A |
| Intermittent Rating | 500A (5 min) |
| Cranking Rating 30 sec | 900A |
| Battery Inputs | 1 |
| Cable Clearance For 4/0 AWG Cables | 1.12in (28.45 mm) |
| Cable Size to Meet Ratings | 4/0 AWG (120mm ) |
| Mounting Holes | Accept #10 Screw |
| Stud Material | Tinned Copper |
| Stud Torque | 120 in-lb (13.56 Nm) |
| Terminal Stud Size | 3/8" - 16 (M10) |
Brand: Blue Sea Systems
UPC: 632085600525
Model Number: 6005200-BSS
Weight: 0.620000
