Blue Sea ST CLB Circuit Breaker Block - 6 position with Negative Bus

Blue Sea ST CLB Circuit Breaker Block - 6 position with Negative Bus

Blue Sea ST CLB Circuit Breaker Block - 6 Position with Negative BusModel: 5052-BSS Quick connect clips...
Vendor: Blue Sea Systems
SKU: wt-BSS5052
Availability: In stock
$90.29
$140.36
$90.29
Subtotal: $90.29
Description
Description
x

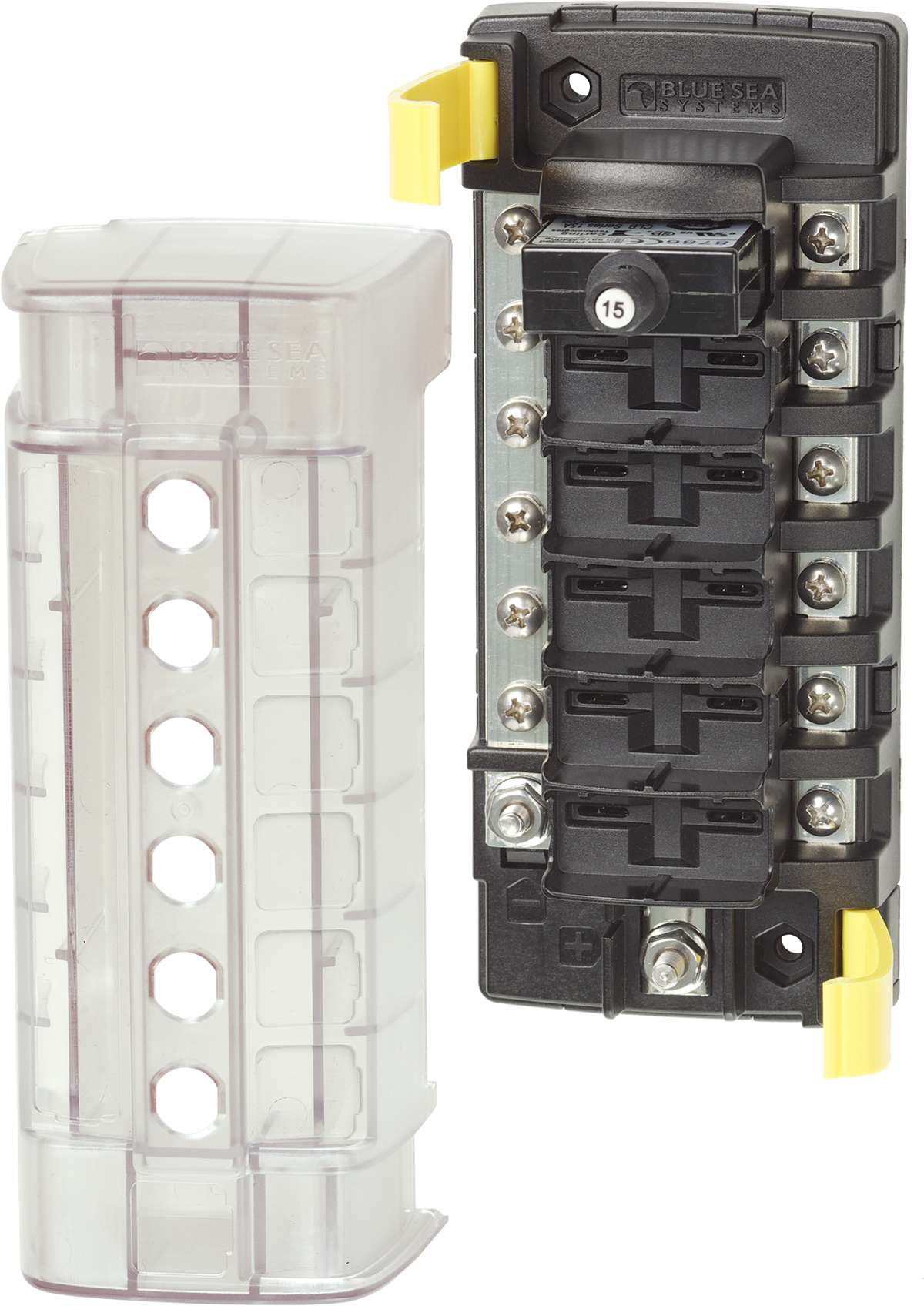

Blue Sea ST CLB Circuit Breaker Block - 6 Position with Negative Bus

Model: 5052-BSS
  • Quick connect clips allow circuit breakers to snap easily into place
  • Tin-plated copper busses and screw terminals
  • Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements
  • Easy to open clip on cover
  • Breakouts allow wire access in two directions
  • Accepts ring terminals
  • Optional push button waterproof boots or dress nuts can be installed over cover
  • Accepts square labels

The advantage of a resettable circuit breaker over a fuse is well known however people find circuit breakers more expensive and difficult to install. The ST CLB Circuit Breaker Block solves this issue by using the compact, snap-in-place CLB resettable circuit breaker which makes breakers as easy to install as a fuse.

Specifications
Circuits 6
Maximum Amperage 100A (per block)
32A (per circuit)
Maximum Voltage 32V DC
Negative Bus #10-32 Stud
Positive Bus #10-32 Stud
Source Common Source
Minimum Operating Temperature -10° C
Maximum Operating Temperature 60° C
Mounting Centers 5.63in (143 mm)


WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Brand: Blue Sea Systems

UPC: 632085050528

Model Number: 5052-BSS

Weight: 0.750000
