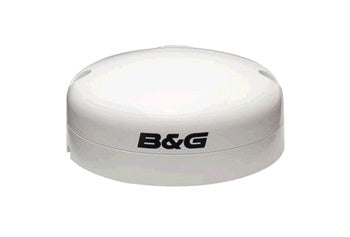

B&G ZG100 GPS Module

B&G ZG100 GPS Module

B&G ZG100 GPS Antenna with Integrated Compass sensorModel: 000-11048-002 NMEA 2000 antenna module offers rugged and precise...
Vendor: B & G
SKU: wt-BNG00011048002
Availability: In stock
$472.52
$472.52
$472.52
Subtotal: $472.52
Description
Description
x

B&G ZG100 GPS Antenna with Integrated Compass sensor

Model: 000-11048-002
  • NMEA 2000 antenna module offers rugged and precise position, and heading sensor
  • Spot-on, around-the-world accuracy -- supporting GPS and GLONASS, WASS/EGNOS/MSAS; Galileo-capable with future software update
  • Excellent time-to-first-fix, multi-GNSS, high-speed updates — up to 10 times per second - for smoother and more accurate location updates
  • Integrated rate stabilized compass to provide chart stabilization, accurate course over ground filtering at low speed, and radar overlay
  • Rugged design for all marine environments and fully waterproof
  • Include spat/pole mount for easy installation and flexible boat location for optimal performance
  • Independent source selection on any display

The ZG100 GPS Antenna with Integrated Compass sensor providing Heading, Heel and Trim.

Note: Not suitable for MARPA or Steering of an Autopilot. Please use an Precision-9.

Specifications
General
Receiver Type L1, C/A code, 1.575 GHz Frequency/L2 C/A code, 1.602 GHz Frequency
Channels 32 channels
Position Update Rate Up to 10 Hz (1,5,10)
Horizontal Accuracy 3 m (9.8 ft)
Heading Accuracy +/- 3°
Rate of Turn +/- 3°
Pitch / Roll Accuracy @30 degrees 1 grade error
Cold Start 50 sec
Start-Up Time 3 sec
Satellite Reacquisition 5 sec
Environmental
Operating Temperature -25° C to +60° C
Storage Temperature -40° C to +85° C
Splash Proof IPX7
Humidity 40° C, 93%RH, operating
Electrical
Input Voltage 9 V DC - 18 V DC
Reverse Polarity Protection Yes
Power Consumption < than 2w
Current Consumption < 100 mA @ 12 V DC
Dimensions 90 mm (diam) x 38mm (height) 3.54" (diam) x 1.50" (height)
Weight 0.14 Kg (0.3 lbs) aprox
Power/Data Cable NMEA 2000 thru NMEA 2000 network
Antenna Connector NMEA 2000 Micro C: Lowrance attached cable with Micro-C connector
Mounting Flush mount / Standard Pole Mount
Communications
Data I/O Protocol NMEA 2000

What's in the Box:
  • ZG100 GPS Antenna
  • N2KEXT-6RD - 1.82 m (6-ft) NMEA 2000® cable
  • N2K-T-RD - Micro-C T-connector
  • Pole Mount


    • WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

    Brand: B & G

    UPC: 9420064118717

    Model Number: 000-11048-002

    Weight: 1.550000
