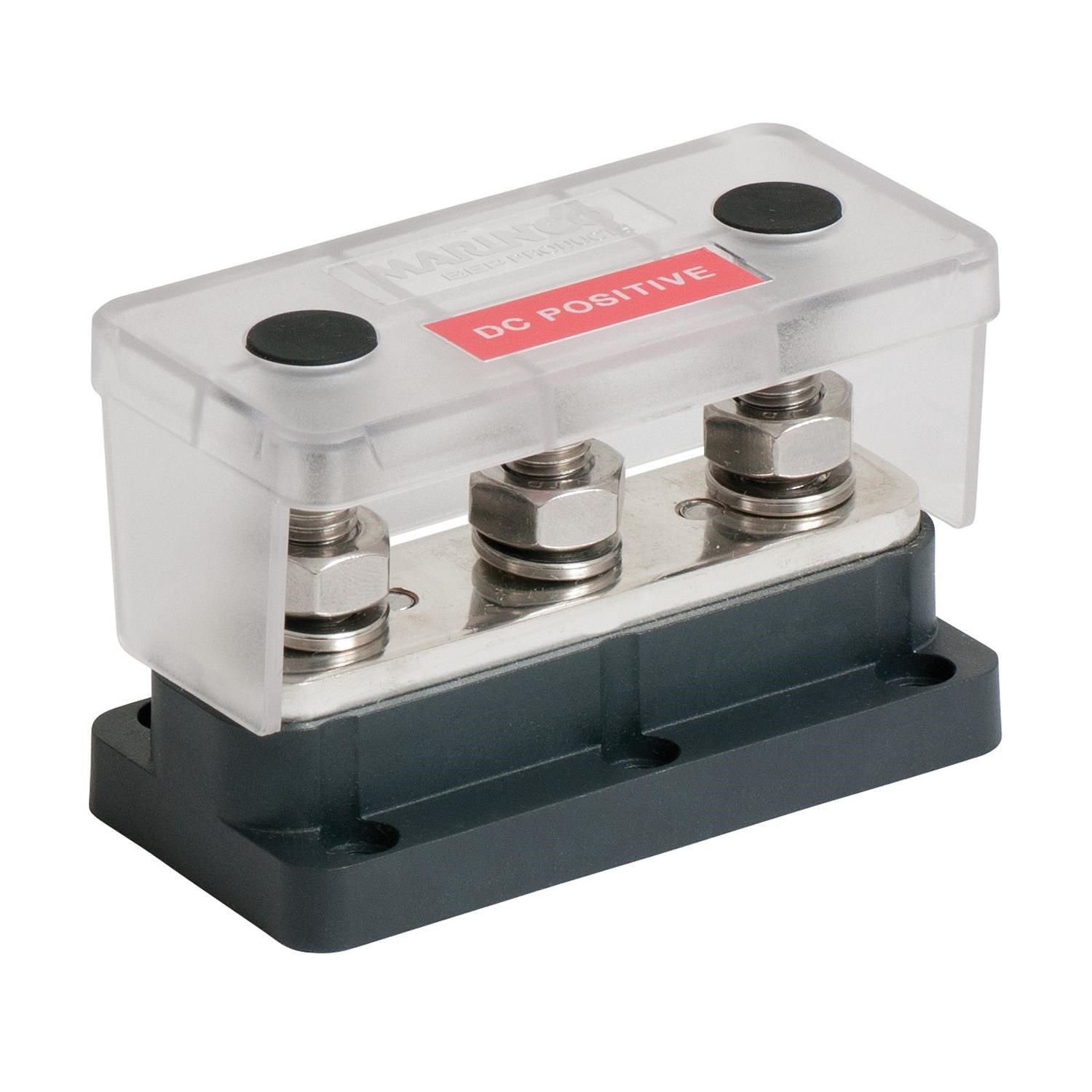

BEP Heavy Duty Buss Bar 3 3/8in Studs 650 Amp

BEP Heavy Duty Buss Bar

• 3 Stud-650A busbar: 10mm (3/8") stainless steel studs
• Stud treated with anti-sieze lubricant
• 50 VDC
• High temperature, fibre reinforced plastic base provides stngth and chemical resistance
• Clear polycarbonate cover
• Tinned CDA102 Copper conductors, stainless teel studes and nuts, for longevity in the marine environment
• All threads are metric
• Compact footprints save space
• Generous stud lengths
• Innovative clear covers insulate/protect on three sides, with "snap outs" for extra cable access as required
• Modular sizing and comon interconnection height: Easily linked with other Pro Installer Bus Bars and Fuseholders to save installation time and space
• Robust construction and additional mounting screw holes provided for ultimate security
• Designed for the harsh marine environment
• Anti-seize lubricant applied to prevent thread galling

Pro Installer Heavy Duty Busbars provide a robut menas to connect (bus) together the multitude large cables found in modern electrical installations. This range offers the installer greater flexibility to select busbars to match their load and space requirements.

Brand: BEP

UPC: 843687006657

Model Number: 777-BB3S-650

Weight: 2.000000
