Simrad DST810 Multi Sensor Airmar Smart Transducer Bronze Thru Hull

Simrad IDST-810 active Depth, Speed, Temperature thru-Hull Bronze 235 kHz transducer.Model: 000-15736-001 5 Hz speed output (5X...
Vendor: Simrad
SKU: wt-SIM00015736001
Availability: In stock
$419.00
$419.00
$419.00
Subtotal: $419.00
Description
Description
x

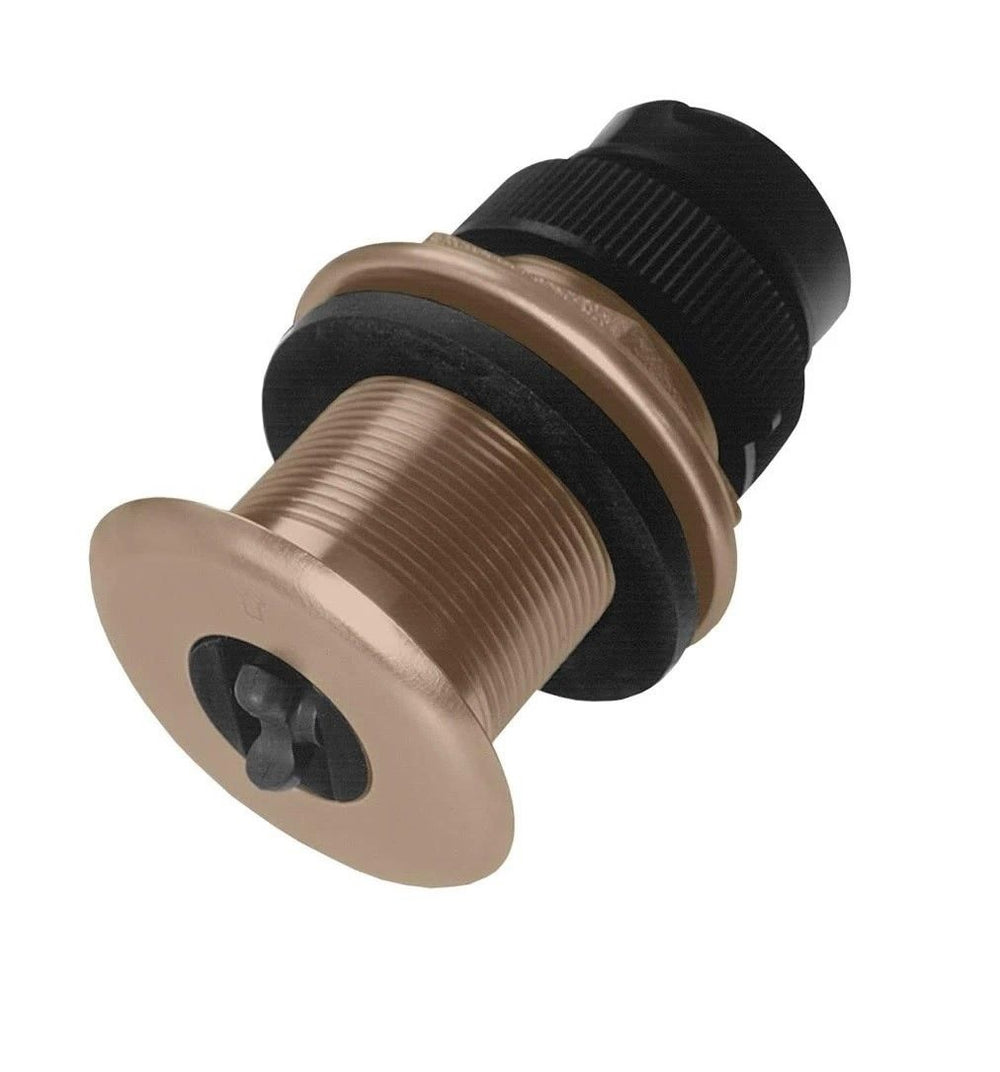

Simrad IDST-810 active Depth, Speed, Temperature thru-Hull Bronze 235 kHz transducer.

Model: 000-15736-001
  • 5 Hz speed output (5X per second) for visibly smoother speed-through-water reporting and faster data for better decision making
  • Integrated attitude sensor for heel and trim benefits sailing and power boats
  • Advanced Speed Calibration allows for manual speed entries for multiple heel angles and up to 10 speeds, formerly only possible through expensive PC software
  • DST810 stores configurations and delivers data to the NMEA 2000(R) network.
  • Depth, heel-corrected speed-through-water, heel and trim, and water temperature from one installed multisensor.
  • Popular depth sensor for shallow water performance.
Specifications
Acoustic Window
Urethane
Hull Deadrise Up to 22 deg
Data Update Rate Depth 1X/second
Data Update Rate Speed 5X/second
Attitude Accuracy +/- 1 deg nominal after sensor calibration
Depth Frequency 235 kHz
Minimum Depth Range 0.5 m (1.6 feet)
Maximum Depth Range Up to 100 m (330 feet)-NMEA 2000(R)
Speed Range Up to 45 knots
Pressure Rating 3 m (10 feet)
Pulse Rate 20,000 p/nm* (5.6 Hz per knot)-*p/nm = pulses per nautical mile
Supply Voltage 9 VDC to 16 VDC-per NMEA 2000
Supply Current <200 mA-per NMEA 2000(R)
Wireless Protocol Bluetooth Low Energy (BLE)
Wireless Range Up to 30 feet depending on mount location
Standard Cable Length 6 m (20 feet) DeviceNet-NMEA 2000(R)
Temperature Sensor Accuracy +/-0.5 degC (+/-1.8 degF)
Temperature Sensor Range -10 degC to 40 degC (14 degF to 104 degF)
NMEA 2000 Load Equivalency Number (LEN) 3

What's in the Box:
  • DST-810 Insert
  • Bronze Housing


WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Brand: Simrad

UPC: 9420064117901

Model Number: 000-15736-001

Weight: 2.6
