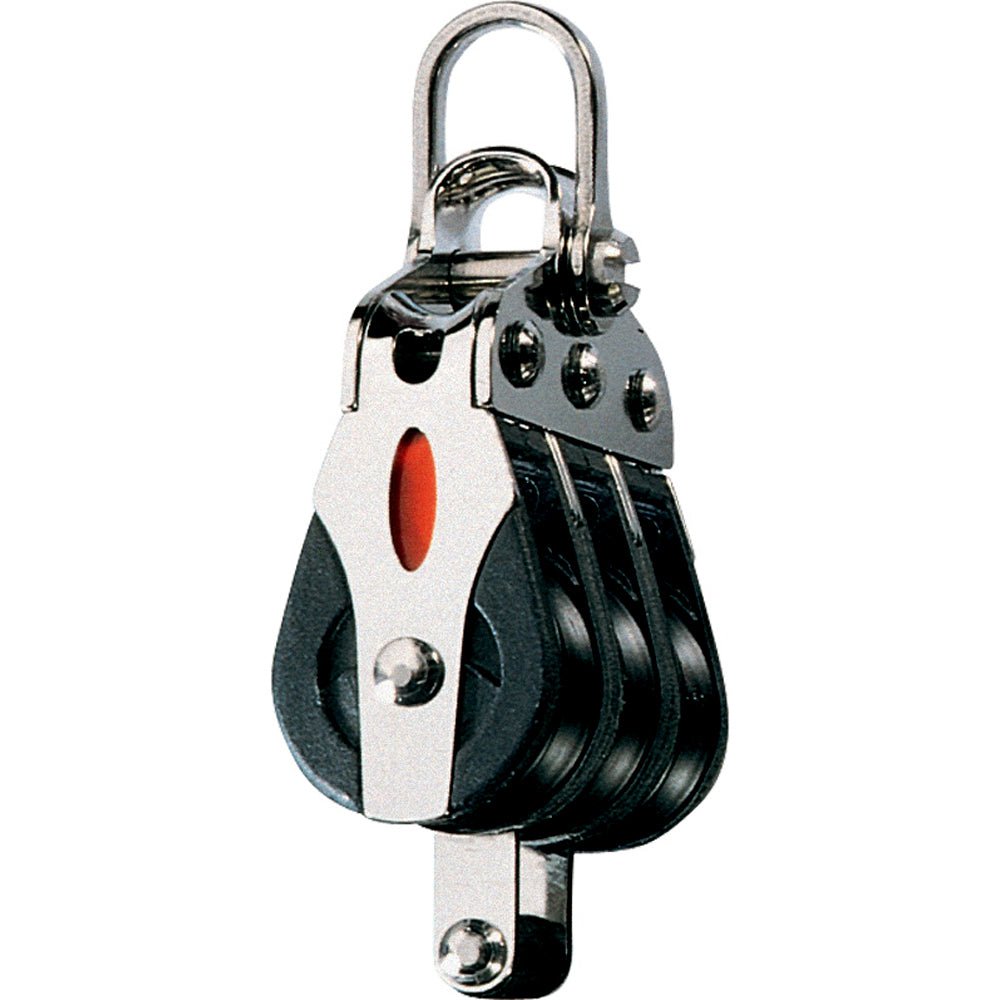

Ronstan Series 20 Ball Bearing Block - Triple - Becket - 2-Axis Shackle Head [RF20312]

Ronstan Series 20 Ball Bearing Block - Triple - Becket - 2-Axis Shackle Head [RF20312]

Series 20 Ball Bearing Block - Triple - Becket - 2-Axis Shackle HeadFeatures: Low friction High static...
Vendor: Ronstan
SKU: 55142
Availability: In stock
Product type: Blocks
$72.00
$84.71
$72.00
Subtotal: $72.00
Description
Description
x

Series 20 Ball Bearing Block - Triple - Becket - 2-Axis Shackle Head

Features:

  • Low friction
  • High static and dynamic load capacity
  • Lightweight
  • Precision molded Acetal sheaves running on stainless steel or Torlon® ball bearings provide high performance & low friction
  • Two-Way head can be fixed at 0° or 90°


Applications:
  • Dinghy control lines
  • Dinghy vangs
  • Cunninghams
  • Traveller controls


Materials:
  • Stainless steel ball bearings
  • UV Stabilized Acetal sheave
  • Grade 316 stainless steel load strap and head fitting
  • Impact and UV resistant, fiber reinforced Nylon cheeks


Specifications:
Sheave Ø: 20mm(3/4")
Max. Rope Ø: 6mm(1/4")
PinØ: 4mm(5/32")
M.W.L.: 400kg(880lbs)
B. L.: 850kg(1,870lbs)
Weight: 64g(2.3oz)
