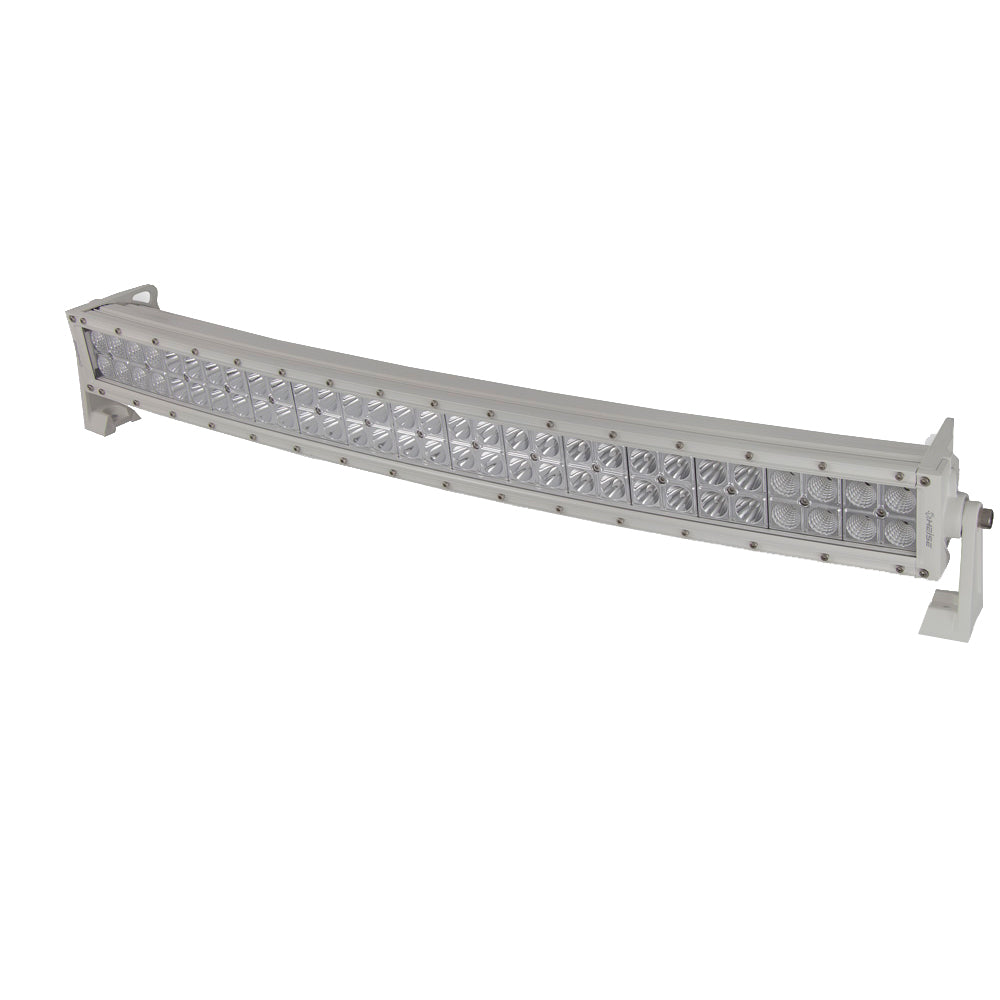

HEISE Dual Row Marine LED Curved Light Bar - 30" [HE-MDRC30]

HEISE Dual Row Marine LED Curved Light Bar - 30" [HE-MDRC30]

Dual Row Marine LED Curved Light Bar - 30"Specs Input Voltage: 10-30V DC Wattage: 180 W (60-3W CREE LEDs)...
Vendor: HEISE LED Lighting Systems
SKU: 69772
Availability: In stock
Product type: Lighting
$892.89
$992.59
$892.89
Subtotal: $892.89
Description
Description
x

Dual Row Marine LED Curved Light Bar - 30"

Specs

  • Input Voltage: 10-30V DC
  • Wattage: 180 W
  • (60-3W CREE LEDs)
  • Raw Lumens: 14400
  • LUX at 10M: 625
  • Color Temperature: 6000K
  • Beam Pattern: Combo/Flood 90 degrees/Spot 8 degrees

Construction

  • Housing Material: Die-Cast Aluminum Housing
  • Housing Color: White Coating with UV Inhibitors
  • Membrane: Gore®
  • Lens Material: PC
  • Mounting Bracket: Die-Cast Aluminum
  • Hole Dimensions:
  • Brackets Turned Inward – 31 inches
  • Brackets Turned Outward – 33.5 inches
  • Mounting Bolt Drill – 25 inches
  • Height of Light Bar Itself: 3 inches
  • Depth of Light Bar Itself: 3.5 inches
  • Electronics: Integrated-Epoxy Encapsulated
  • Hardware: Stainless 316

Operation

  • Operating Temperature: – 40 degrees C to +60 degrees C
  • Current Consumption: 9.5 Amps at 13.8 Volts
  • IP Rating: IP67
  • Protections: Reverse Polarity

WarningWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Beam Pattern: Spot-Flood Combo
  • Length (Inches): 30"
  • Housing: White
  • Voltage - Input Range (Volts): 12/24v
  • Box Dimensions: 6"H x 9"W x 35"L WT: 10.8 lbs
  • UPC: 086429348275

Quick Guide (pdf)
