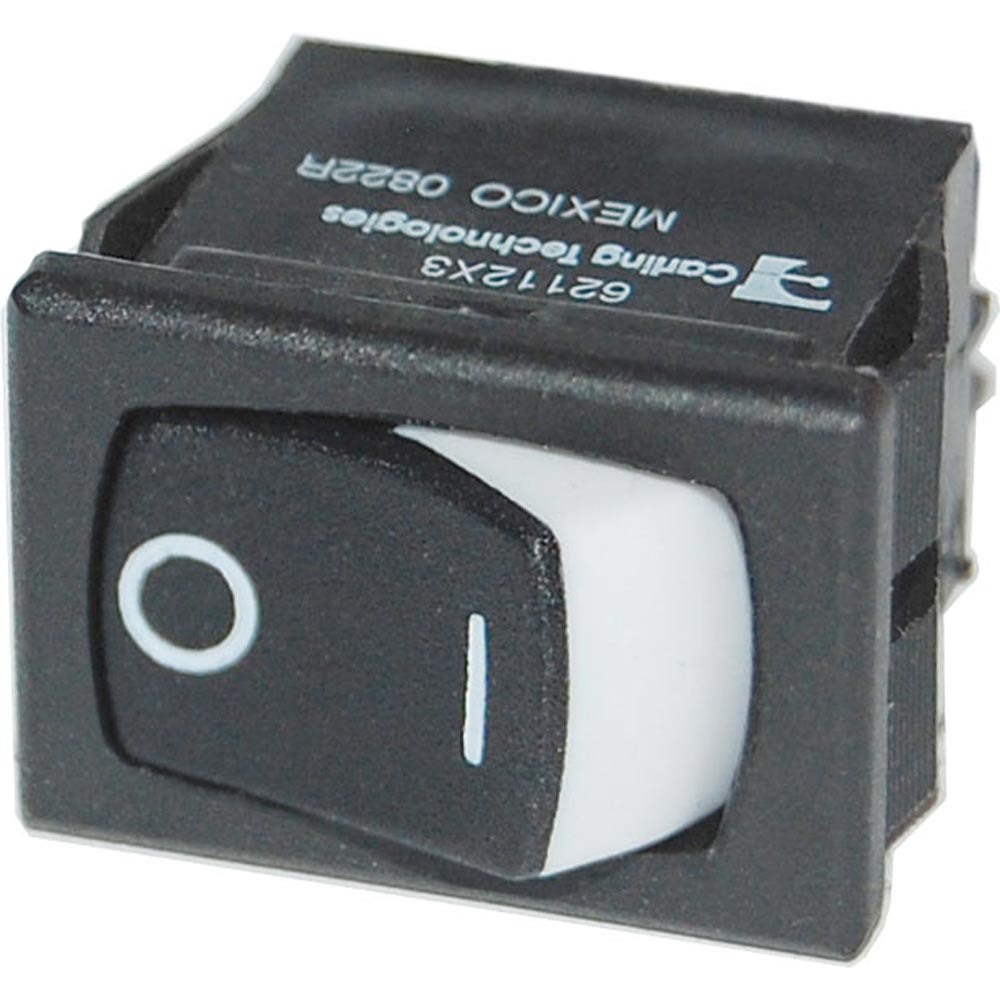

Blue Sea 7481 360 Panel - Rocker Switch SPST - (ON)-OFF [7481]

360 Panel - Rocker Switch SPST - (ON)-OFF

The 360 Panel System uses an open frame to mount a broad selection of modules, allowing multiple functions to be combined in a single panel.

This innovative design offers a wide choice of panel features, can accommodate future changes and permits rapid assembly. With options ranging from battery management to source selection, the 360 Panel System provides unmatched design flexibility.

For use in 360 panels in the following modules: Gauge, DC Push Button + Switch, and DC Battery Management

Specifications:

• Action*: (ON)-OFF

• Pole/Throw**: SPST

• Maximum Amperage***:12A @ 125V AC / 10A @ 12V DC / 10A @ 24V DC / 6A @ 250V AC

• Terminal Type: Quick Connect Tab

• Terminal Size: 0.187" (4.75mm)

• Weight:0.08lb (0.04kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Throw/Pole: SPST
• Color: Black
• Action: (ON)-OFF
• Box Dimensions: 1"H x 3"W x 5"L WT: 0.01 lbs
• UPC: 632085074814
